Inspection Procedure 6: The AM/FM Radio Broadcasting Cannot be Received: Notes

CAUTION: Before replacing the audio visual navigation unit, ensure that the power supply circuit, the ground circuit, and the communication circuit are normal. (Check that the voltage is 10 V or more.)

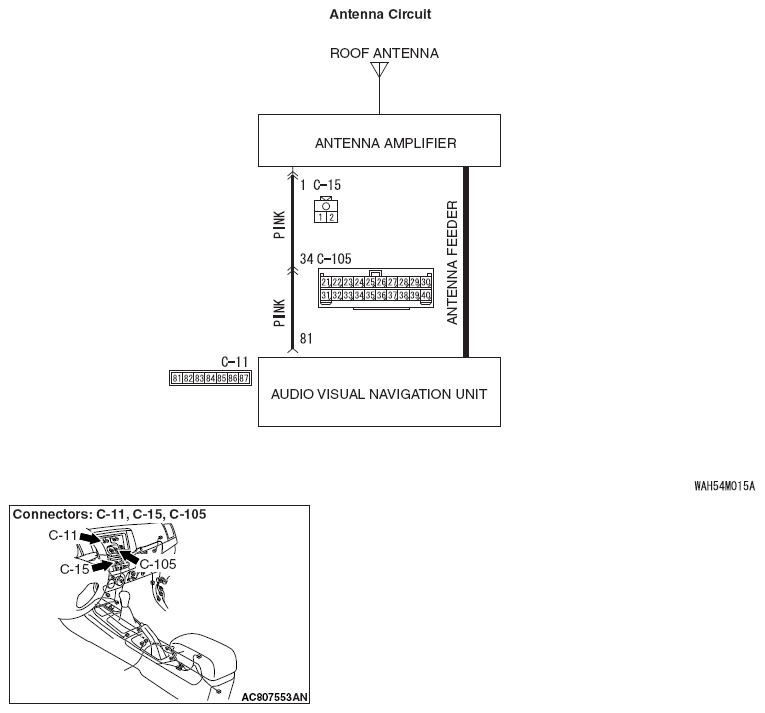

Fig 1: Antenna Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
