Inspection Procedure 5: The Screen is not Normal in the Navigation Mode: Notes
CAUTION:

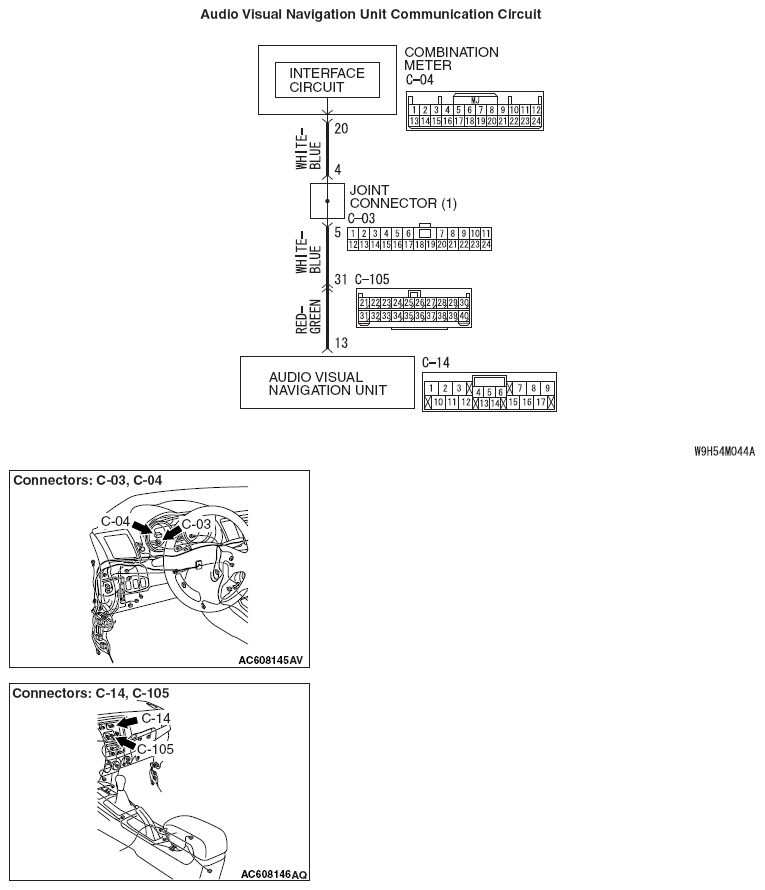

Before replacing the audio visual navigation unit, ensure that the power supply circuit, the ground circuit, and the communication circuit are normal. (Check that the voltage is 10 V or more.)
