Inspection Procedure 12: Check the CAN box unit power supply circuit: Notes

CAUTION: Whenever the CAN box unit is replaced, ensure that the power supply circuit and the grounding circuit are normal. (Check that the voltage is 10 V or more.)

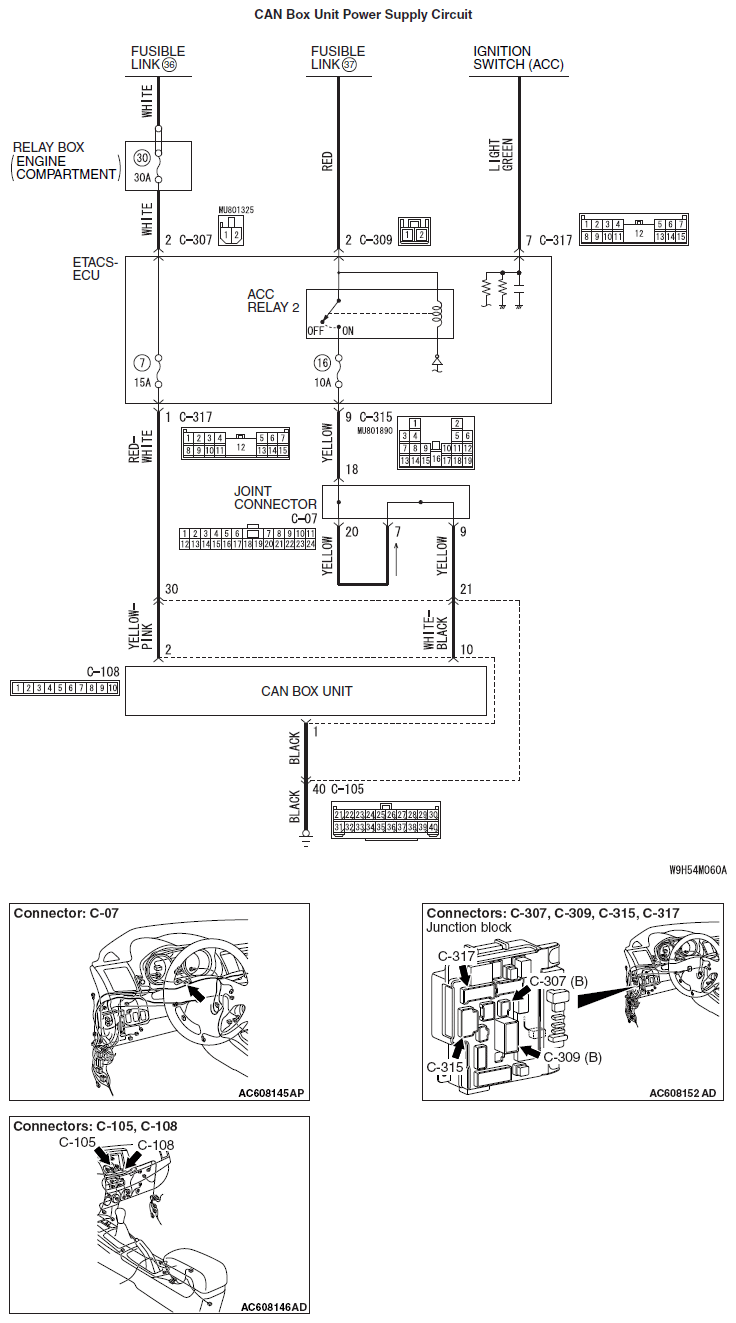

Fig 1: CAN Box Unit Power Supply Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
