Inspection Procedure 11: The picture and sound of external input are not played: Notes

CAUTION: Whenever the audio visual navigation unit is replaced, ensure that the power supply circuit and the grounding circuit are normal. (Check that the voltage is 10 V or more.)

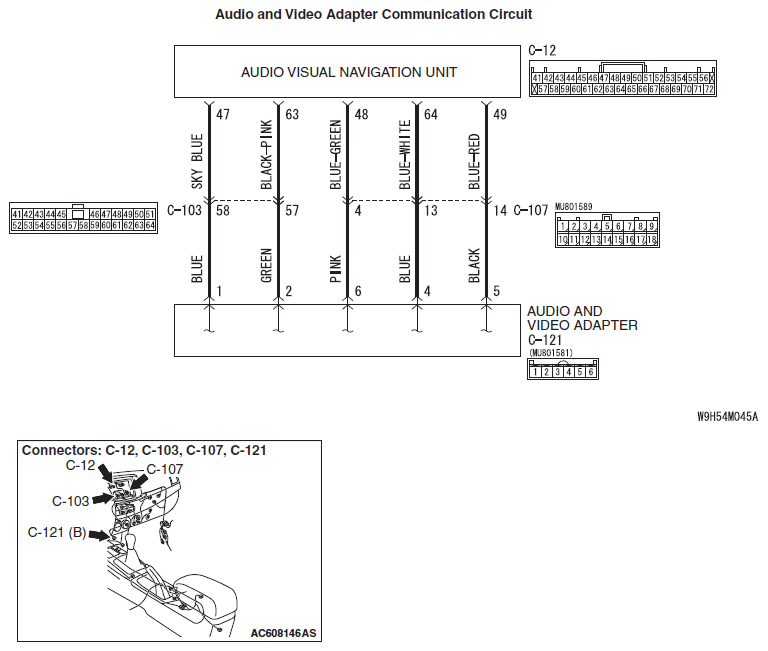

Fig 1: Audio And Video Adapter Communication Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
