System block diagram

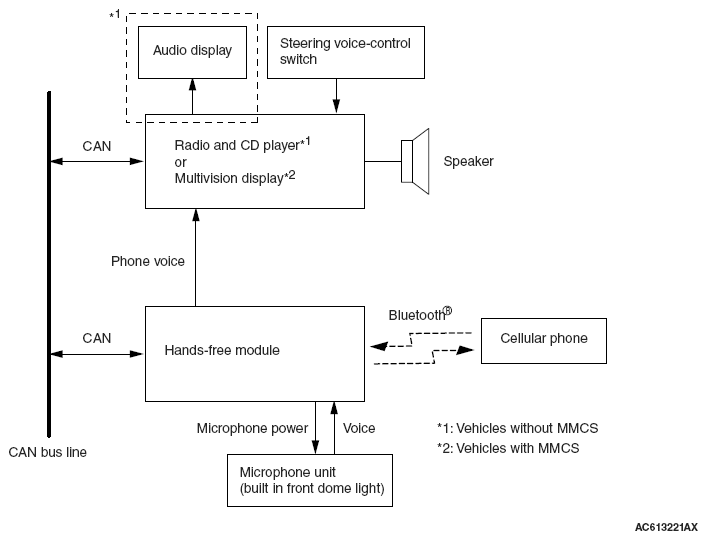

Fig 1: Hands Free Cellular Phone System Block Diagram

G06670054

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
