Headlight Relay (High) Check

BATTERY VOLTAGE CHART

Battery voltage Terminal number Normal conditions
Not energized 3 - 4 No continuity
With current supply [terminal 2 (+), terminal 1 (-)] Continuity exists (2 ohms or less)

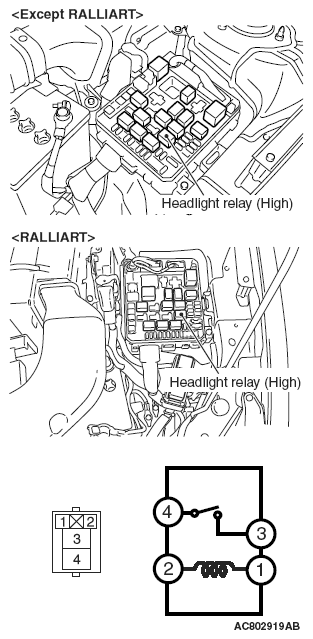

Fig 1: Identifying Headlight Relay (High)
G06673399Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
