Lighting Control Sensor Removal And Installation: Notes

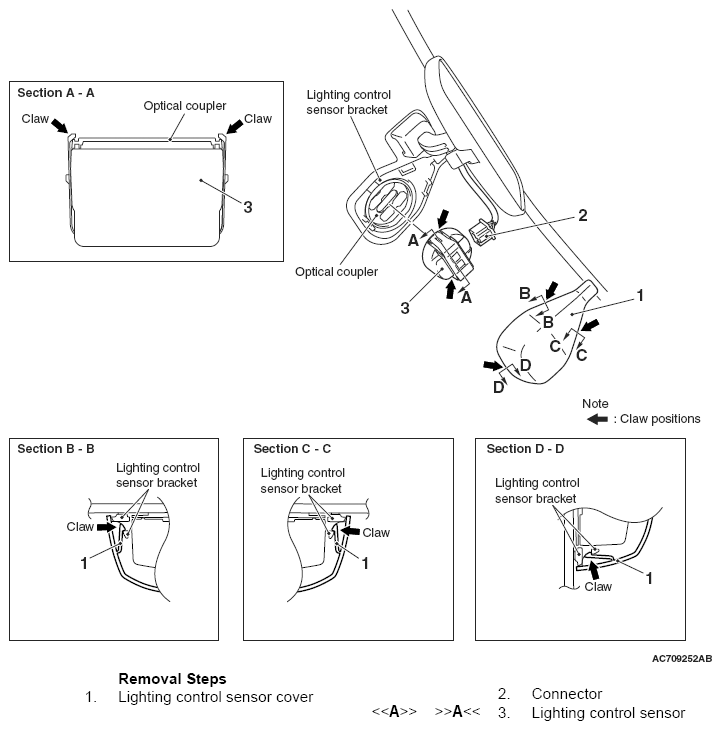

Fig 1: Identifying Lighting Control Sensor Components

G06673396

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
