DTC B16A5: Turn-signal light (RH) short circuit: Notes

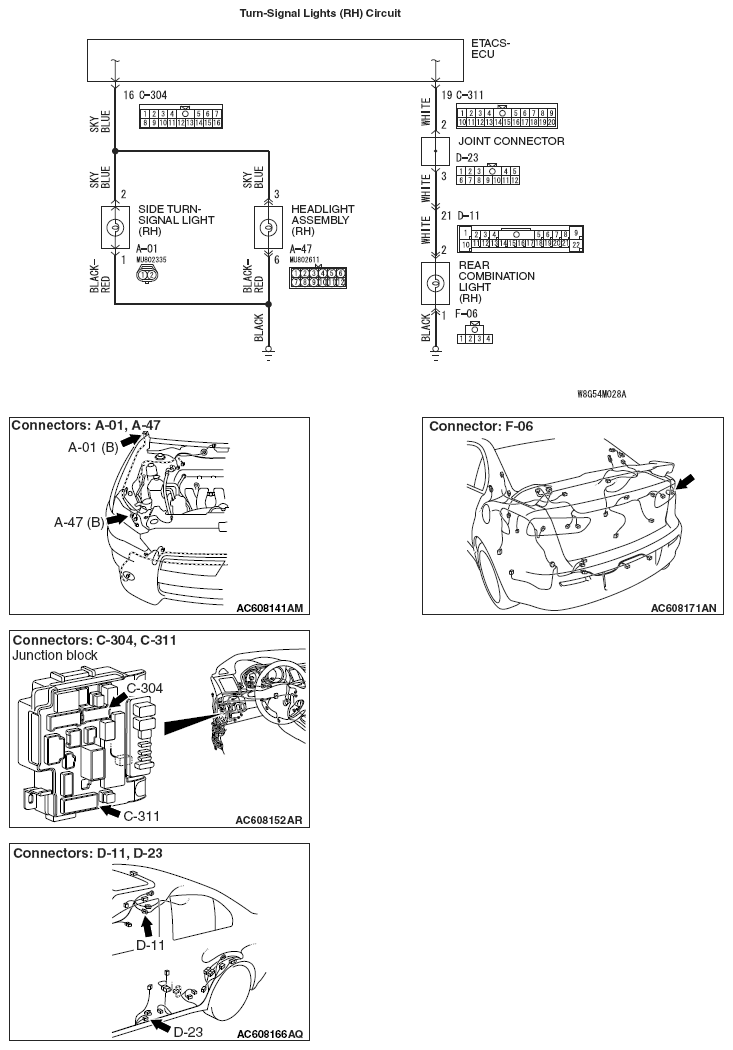

Fig 1: Turn-Signal Lights (RH) Circuit Diagram

G06673344

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
