DTC B16A4: Blown turn-signal light (RH) bulb: Notes

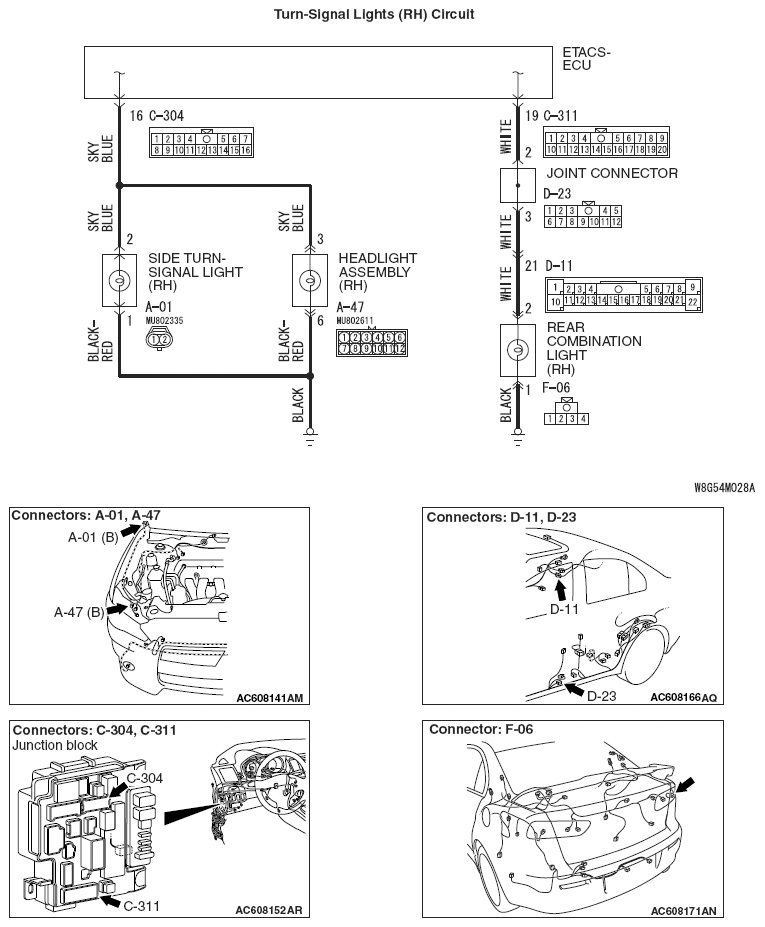

Fig 1: Turn-Signal Lights (RH) Circuit Diagram

G06673339

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
