DTC B16A2: Blown turn-signal light (LH) bulb: Notes

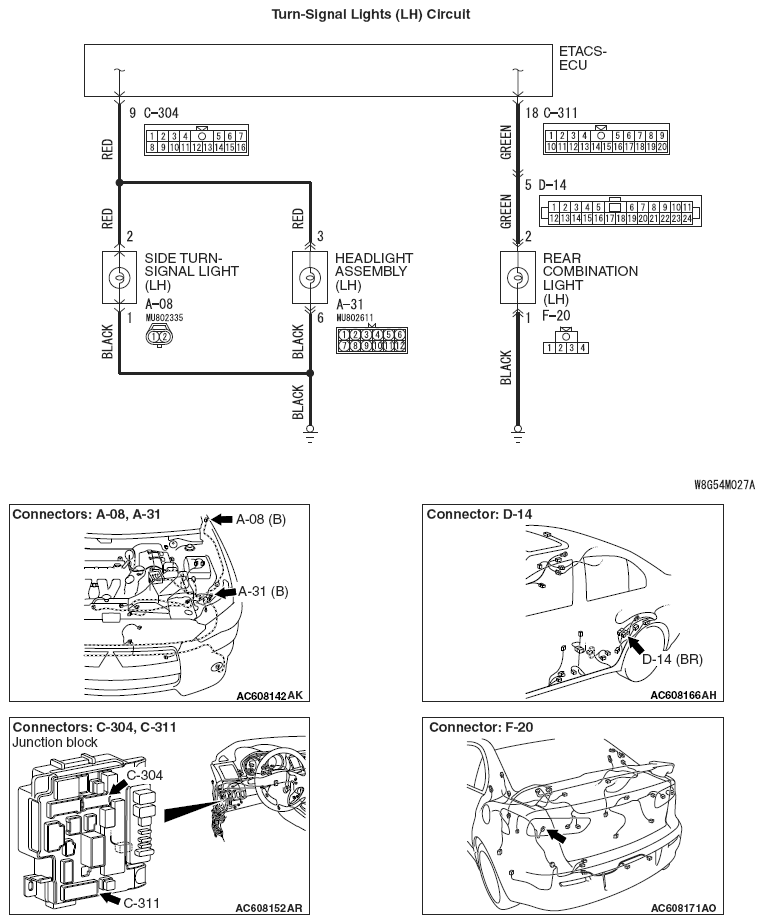

Fig 1: Turn-Signal Lights (LH) Circuit Diagram

G06673332

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
