Rear Combination Light -- Lancer
>>
Taillight Removal And Installation
Taillight Removal And Installation

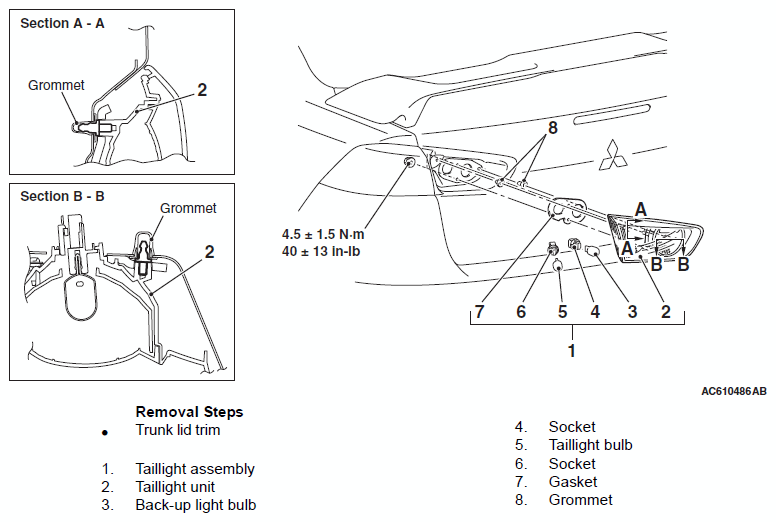

Fig 1: Taillight Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
