Inspection Procedure 2: One of the taillights does not illuminate: Notes

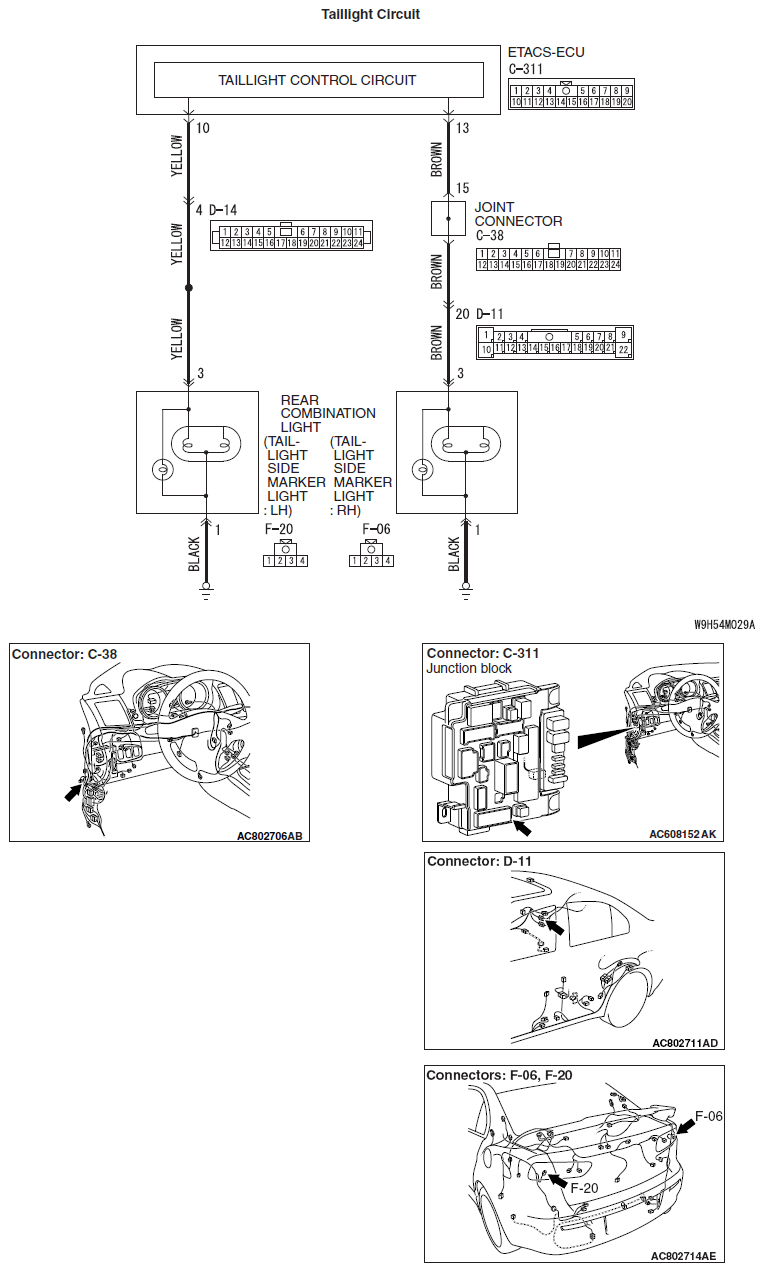

Fig 1: Taillight Circuit Diagram

G06673430

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
