Front Fog Light Relay Check

TERMINAL REFERENCE CHART

Battery voltage Terminal number Normal conditions
Not energized 3 - 4 No continuity
With current supply [terminal 2 (+), terminal 1 (-)] Continuity exists (2 ohms or less)

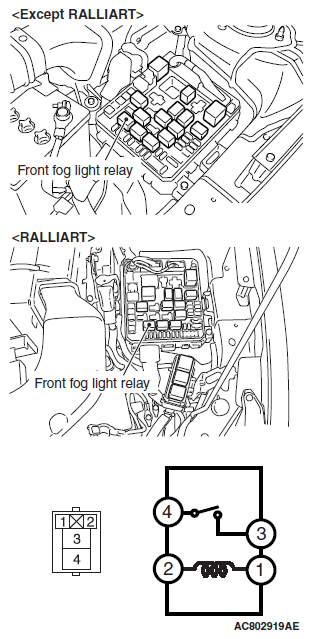

Fig 1: Identifying Front Fog Light Relay
G06673458Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
