Inspection Procedure 1: None of the front fog lights illuminates: Notes

CAUTION: Whenever the ECU is replaced, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

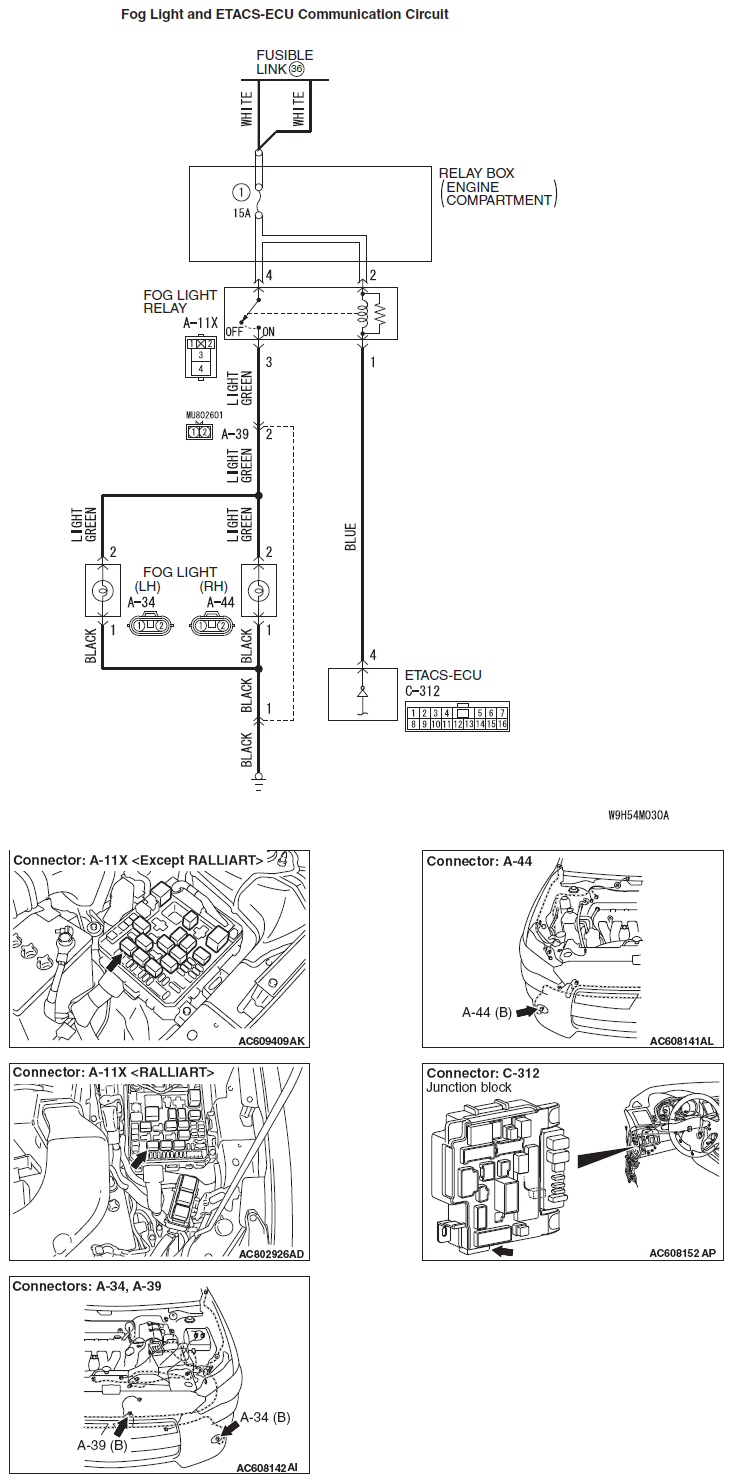

Fig 1: Fog Light And ETACS-ECU Communication Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
