Inspection Procedure 8: The trunk is not opened when the keyless entry transmitter "TRUNK" button is operated: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

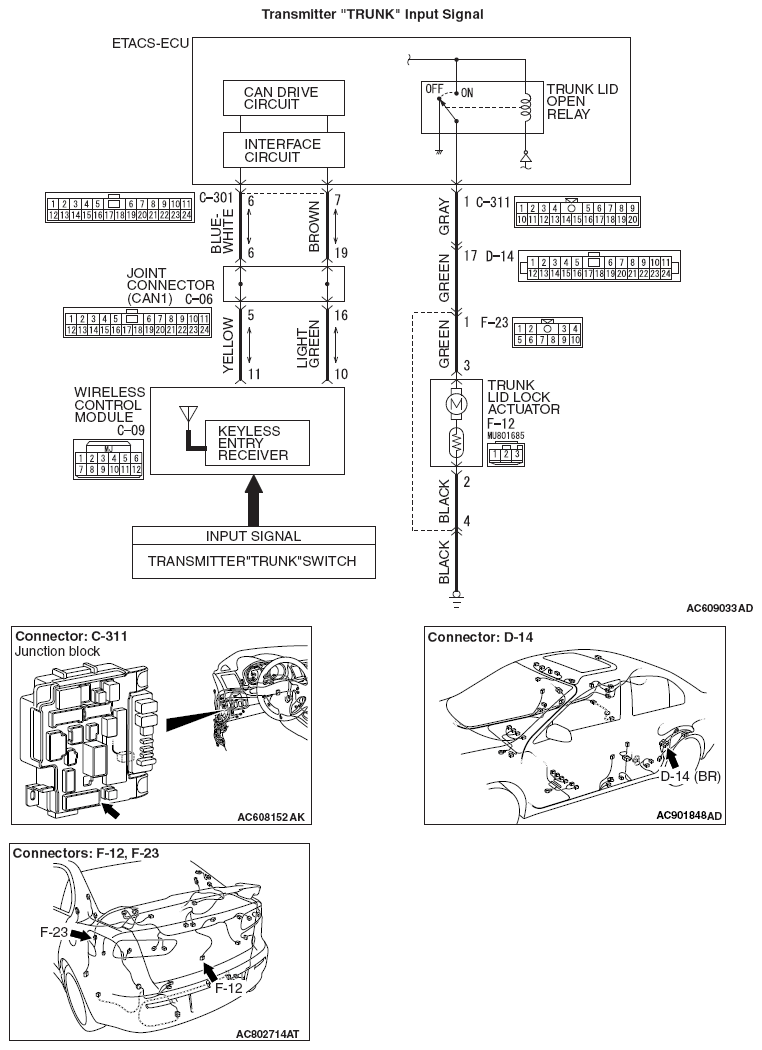

Fig 1: Transmitter "TRUNK" Input Signal Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
