Registration flow chart

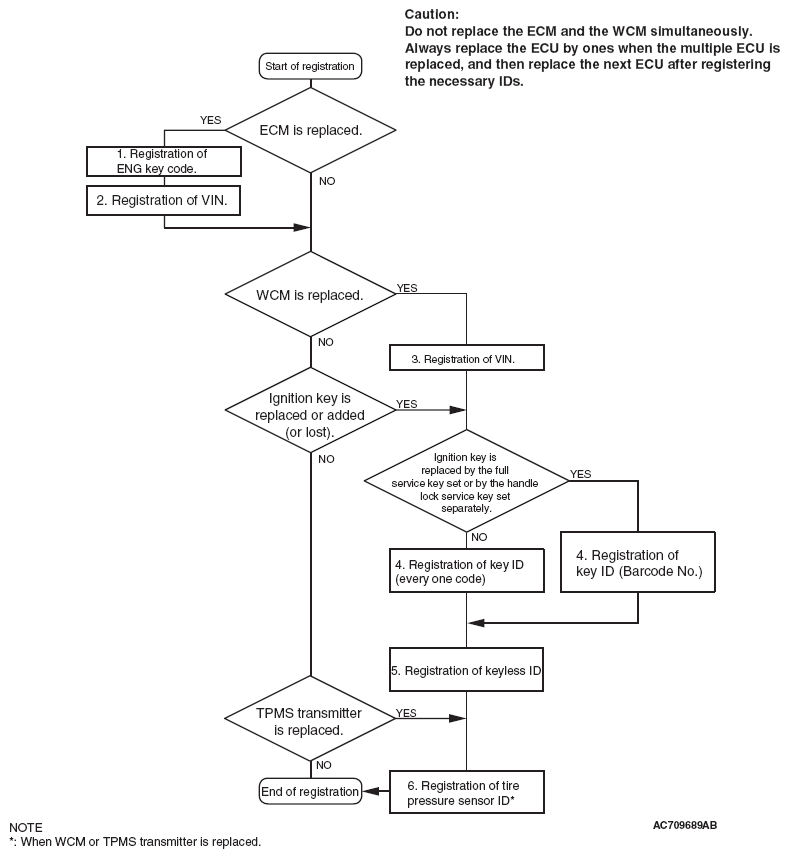

Fig 1: Wireless Control Module - Registration Flow Chart
G06666144Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
