DTC U1515: No-Bus activity error (LIN): Notes

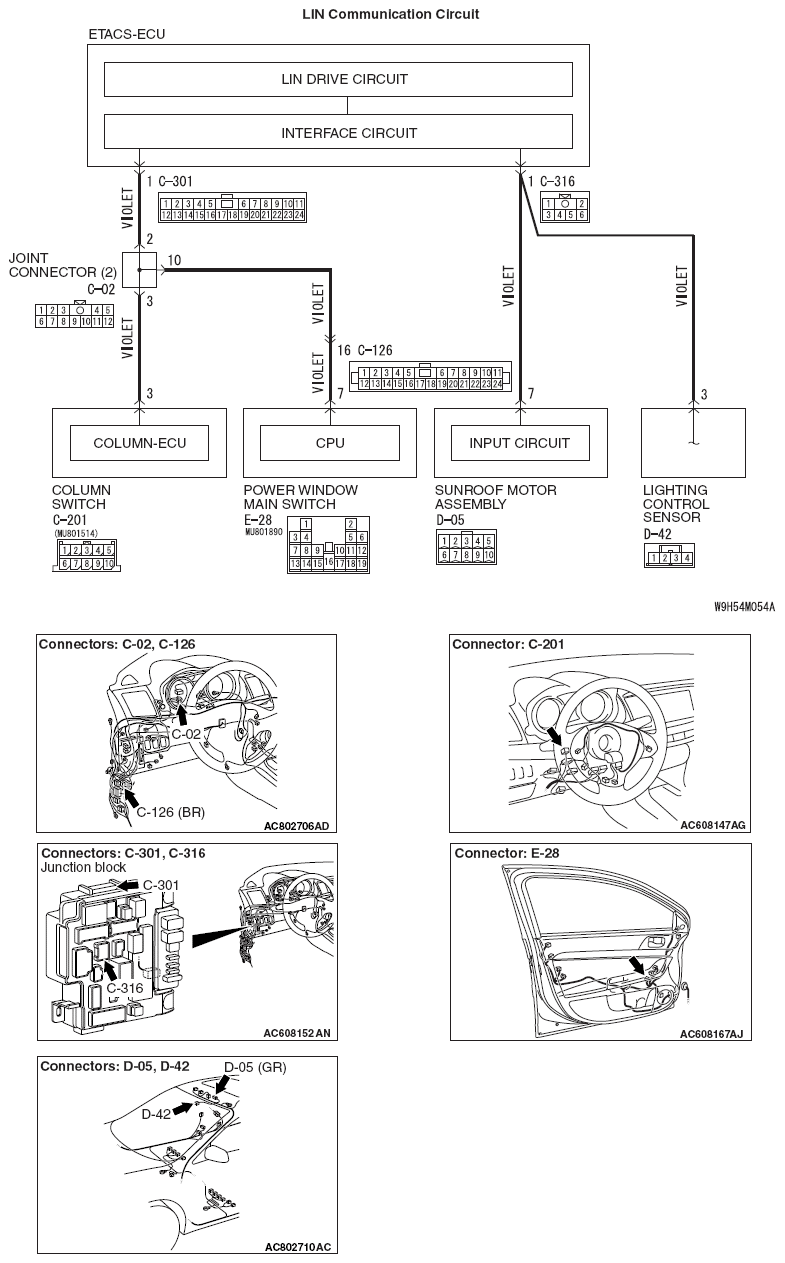

Fig 1: LIN Communication Circuit Diagram

G06673734

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
