Malfunction of ETACS-ECU power supply circuit: Notes

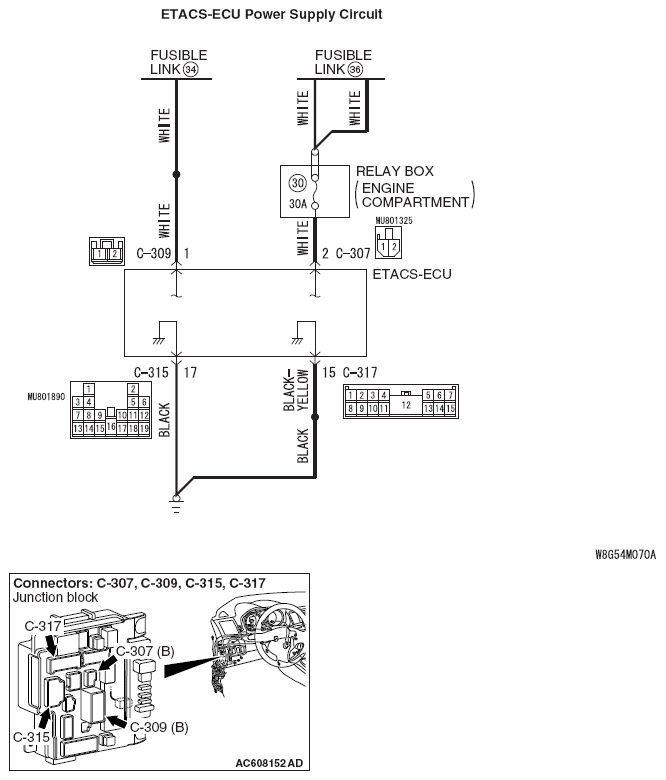

Fig 1: ETACS-ECU Power Supply Circuit Diagram

G06673655

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
