Inspection Procedure 3: ETACS-ECU does not receive any signal from the key reminder switch: Notes

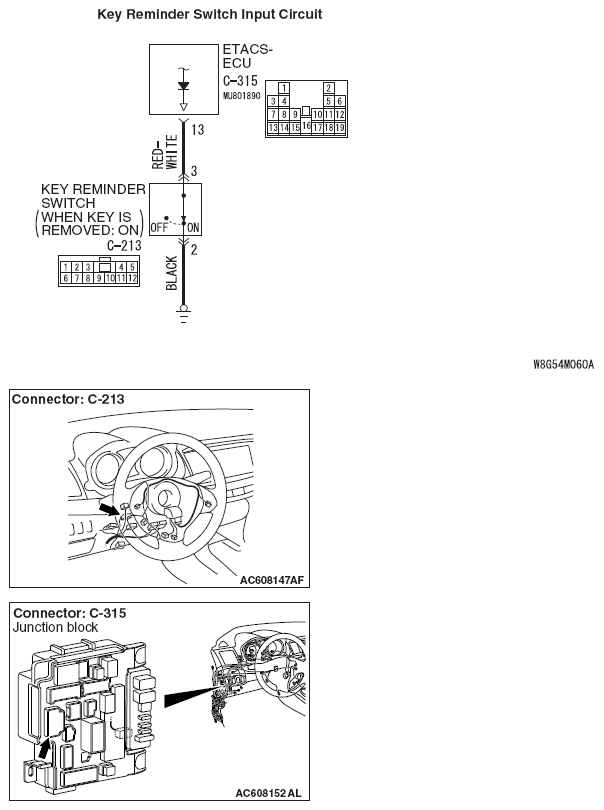

Fig 1: Key Reminder Switch Input Circuit Diagram
G06673664Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
