Inspection Procedure 11: ETACS-ECU does not receive any signal from the column switch signal: Diagnosis

Required Special Tools:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: Vehicle Communication Interface (V.C.I.)
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)

STEP 1. Using scan tool MB991958, read the ETACS diagnostic trouble code.
Check the DTC is set to the ETACS-ECU.

CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
1. Connect scan tool MB991958. Refer to "HOW TO CONNECT THE SCAN TOOL (M.U.T.-III) ."
2. Turn the ignition switch from "LOCK" (OFF) position to "ON" position.
3. Check if DTC is set.
4. Turn the ignition switch to the "LOCK" (OFF) position.
  Q: Is the DTC set?
  1. YES: Troubleshoot the ETACS-ECU (Refer to DIAGNOSTIC TROUBLE CODE CHART ).
  2. NO: Go to Step 2.

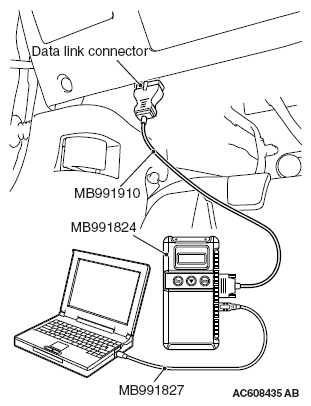

    Fig 1: Connecting Special Tool To Data Link Connector
    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
STEP 2. Column switch check
- Check the continuity for windshield wiper and windshield washer switch (Refer to WIPER/WASHER SWITCH CONTINUITY CHECK ).
- Check the continuity for column switch (switch body part) (Refer to COLUMN SWITCH (SWITCH BODY PART) CONTINUITY CHECK ).
  Q: Is the check result normal?
  1. YES: The trouble can be an intermittent malfunction (Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTION ).
  2. NO: Replace the column switch.
