>>B<< EGR Inlet Pipe Gasket/EGR Valve Support Gasket/EGR Pipe Gasket Installation

  1. Temporarily tighten each part so that the protrusion of each gasket is positioned as illustrated.

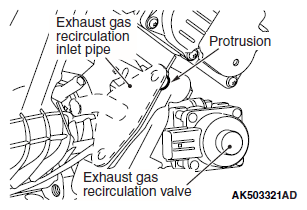

    Fig 1: Identifying Exhaust Gas Recirculation Inlet Pipe And Exhaust Gas Recirculation Valve
    G06670969Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

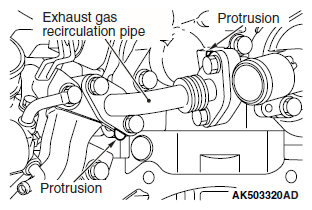

    Fig 2: Identifying Exhaust Gas Recirculation Pipe
    G06670970Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Tighten mounting bolts to the specified torque of 20 ± 2 N.m (15 ± 1 ft-lb) in the order shown in the illustration.

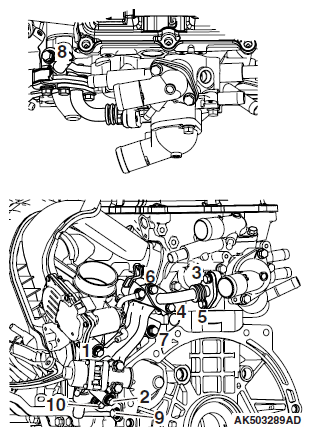

    Fig 3: Identifying Mounting Bolts
    G06670971Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
