>>C<< Cylinder Head Gasket/Cylinder Head Assembly Installation

  1. Completely remove the liquid gasket on the upper plane of the cylinder block and the lower plane of the cylinder head.
    CAUTION: Sufficiently check that there is no residual oil on the place where degreasing is performed. If fingerprints are left, do not touch it with bare hands after the degreasing, since the oils from your fingers will harm the seal ability.
  2. Degrease the place specified in the illustration.

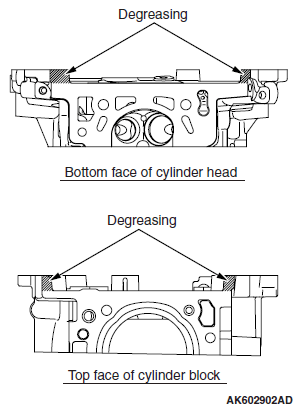

    Fig 1: Removing Liquid Gasket On Upper Plane Of Cylinder Block
    G06671048Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. As shown in the illustration, apply a ø2 to 3 mm (0.079 to 0.118 inch) of sealant (Three bond 1217G or exact equivalent) to the top face of cylinder block.
  4. Install the cylinder head gasket.
    NOTE: Check that the center of the liquid gasket is located toward the cylinder gasket in the position specified in the illustration.
  5. As shown in the illustration, apply a ø2 to 3 mm (0.079 to 0.118 inch) of sealant (Three bond 1217G or exact equivalent) to the top face of cylinder head gasket.
  6. Install the cylinder head assembly.

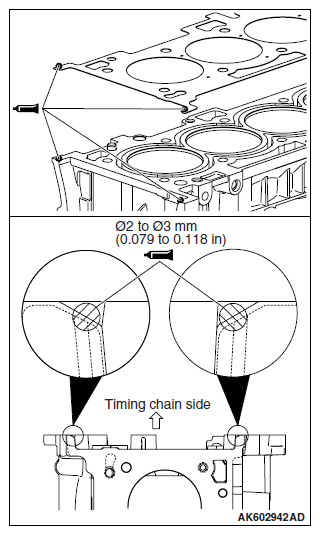

    Fig 2: Identifying Cylinder Head Gasket
    G06671049Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
