>>A<< Valve Stem Seal Installation

CAUTION:
  • The valve stem seal must not be reused.
  • Do not damage the tappet wall during assembly.
  • Be sure to use a special tool to install the valve stem seal. Poor installation causes oil loss via valve guides.
  • If oil is not applied, the valve stem seal may rise to the surface after it is press fitted.
  1. Apply a thin coat of engine oil to a new valve stem seal.
    Fig 1: Applying Thin Coat Of Engine Oil To Valve Stem Seal
    G06671045Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Use special tool MD998737 to press fit the valve stem seal into the valve guide with the valve stem used as a guide.

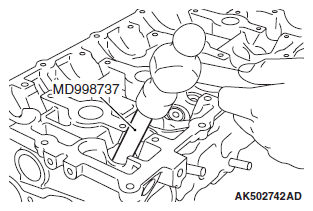

    Fig 2: Pressing Valve Stem Seal Into Valve Guide
    G06671046Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
