>>D<< Crankshaft Bearing Lower Installation

  1. When replacing the crankshaft bearing lower, select a bearing with the size corresponding to the crankshaft journal diameter in the table below.

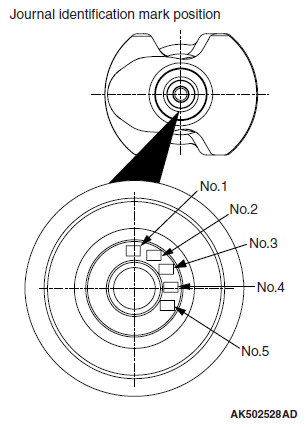

    Fig 1: Identifying Journal Identification Mark Position
    G06671103Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. The crankshaft bearing lower has an identification color or identification mark at the illustrated position.
    IDENTIFICATION MARK REFERENCE

    Crankshaft Crankshaft bearing
    Identification mark Journal diameter mm (in) Identification mark
    0 51.985 - 51.988 (2.0467 - 2.0468) 0
    1 51.982 - 51.985 (2.0465 - 2.0467) 1
    2 51.979 - 51.982 (2.0464 - 2.0465) 2
    3 51.976 - 51.979 (2.0463 - 2.0464) 3
    4 51.973 - 51.976 (2.0462 - 2.0463) 4
    Fig 2: Identifying Crankshaft Bearing Identification Mark Location
    G06671104Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Install the selected crankshaft bearing lower.
