>>C<< Crankshaft Bearing Upper Installation

  1. When replacing the crankshaft bearing upper, select a bearing with the size corresponding to the crankshaft journal diameter in the table below.

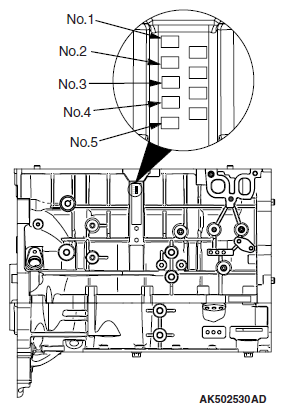

    Fig 1: Identifying Crankshaft Bearing Upper
    G06671101Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. The crankshaft bearing upper has an identification color or identification mark at the illustrated position.
    IDENTIFICATION MARK REFERENCE

    Cylinder block Crankshaft bearing
    Identification mark Journal diameter mm (in) Identification mark
    1 56.000 - 56.006 (2.2047 - 2.2050) 1
    2 56.006 - 56.012 (2.2050 - 2.2052) 2
    3 56.012 - 56.018 (2.2052 - 2.2054) 3
    Fig 2: Identifying Crankshaft Bearing Mark Location
    G06671102Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Install the selected crankshaft bearing upper.
