Engine Cooling -- Lancer
>>
Water Pump
>>
Removal And Installation (2.0L Engine Turbo)
Removal And Installation (2.0L Engine Turbo)

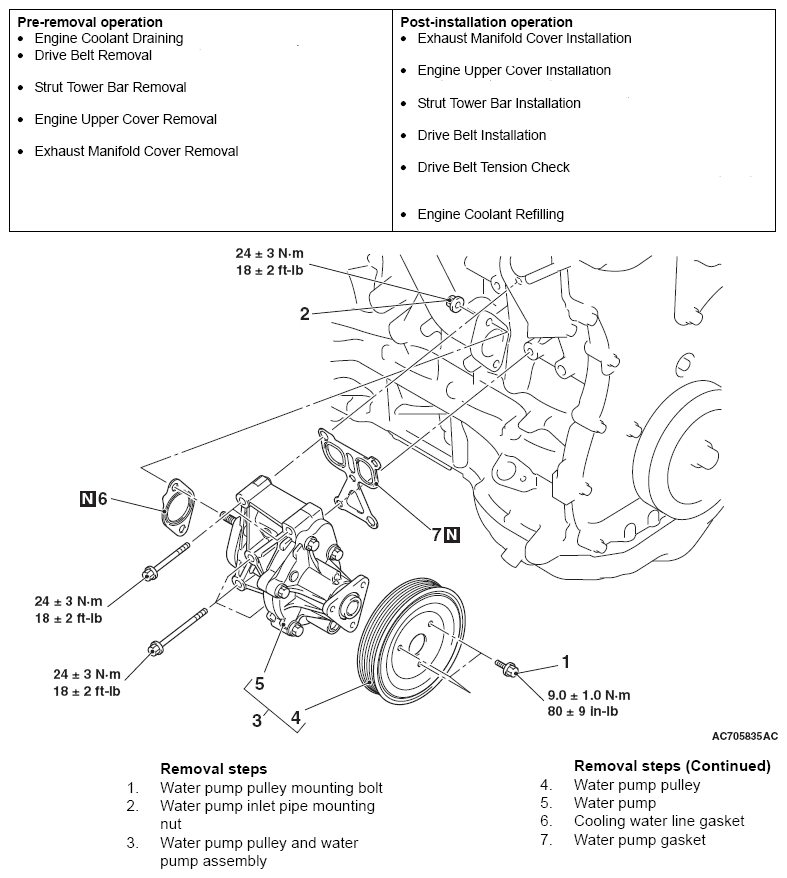

Fig 1: Water Pump Replacement Components With Torque Specifications (2.0L Engine Turbo)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
