Inspection Procedure 4: Radiator Fan and Condenser Fan do not Operate (2.0L ENGINE Turbo)
>>
Notes
Inspection Procedure 4: Radiator Fan and Condenser Fan do not Operate (2.0L ENGINE Turbo): Notes

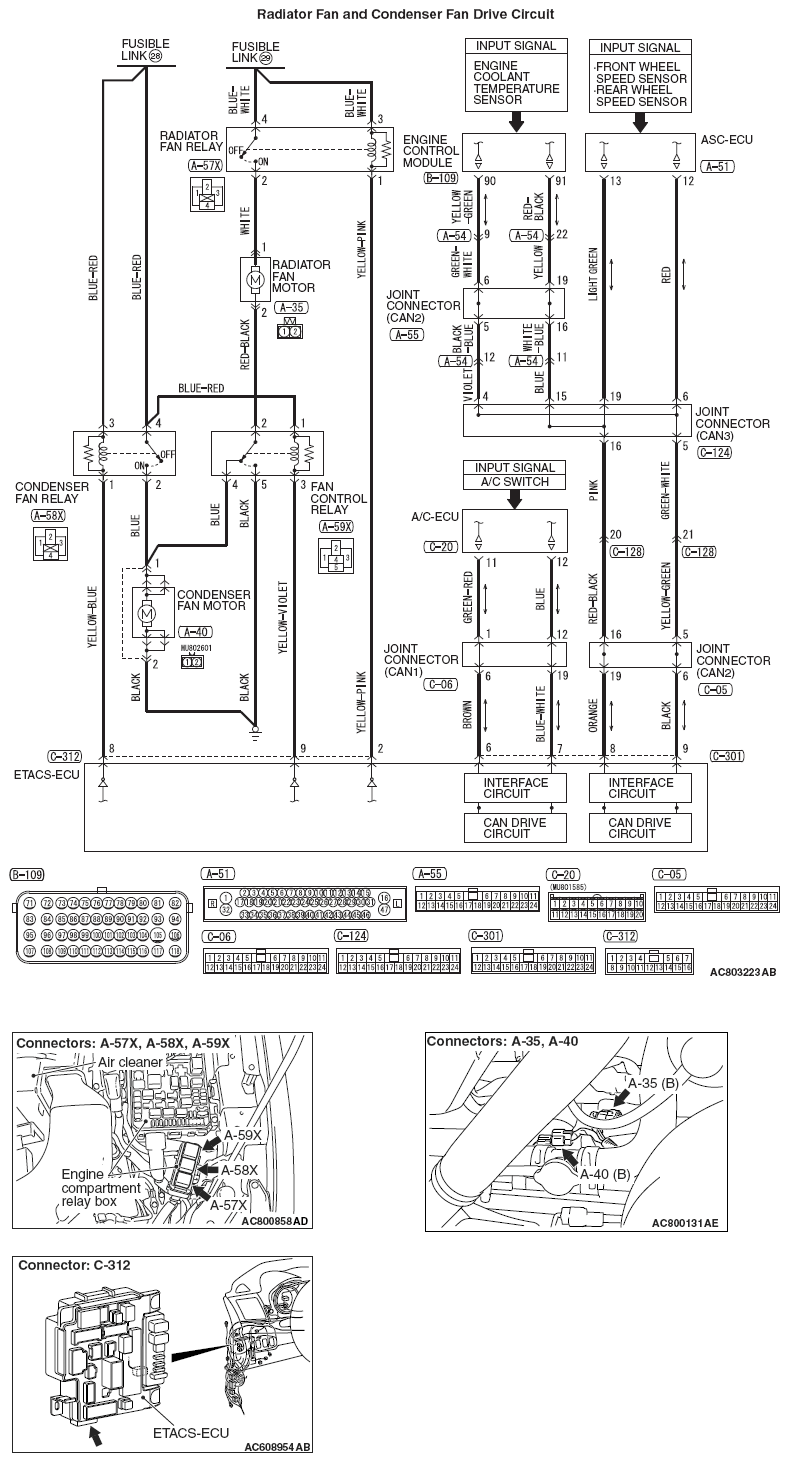

Fig 1: Radiator Fan And Condenser Fan Drive Circuit
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
