Overall Configuration Diagram (Non-Turbo)

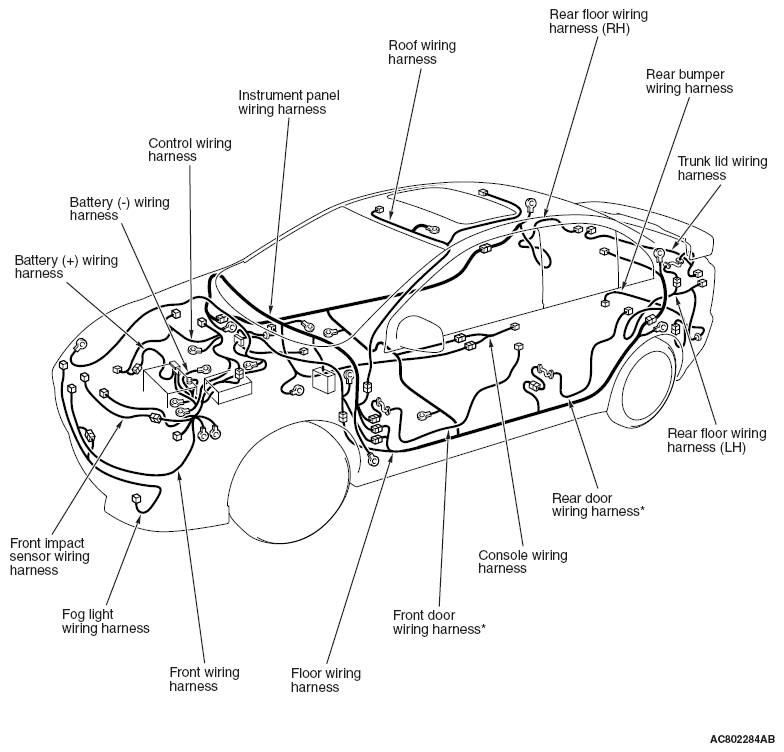

Fig 1: Vehicle Overall Configuration Diagram (Non-Turbo)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE:

1. This illustration shows only major wiring harnesses.
2. *: also equipped at the right side.
