OEM Wiring Harness Routing - Lancer
>>
Luggage Compartment
Luggage Compartment

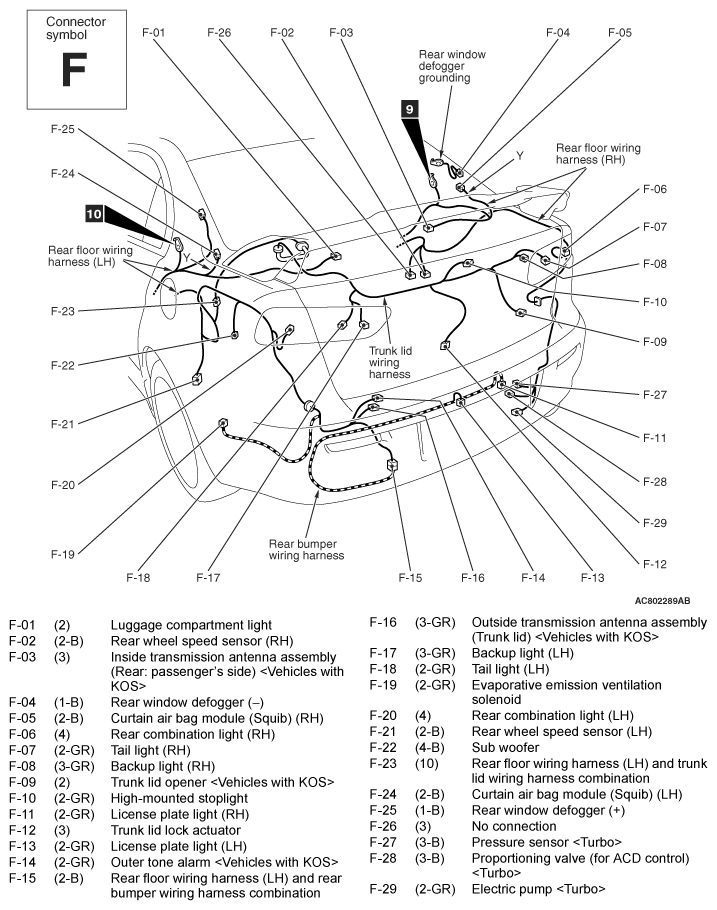

Fig 1: Luggage Compartment Configuration Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
