Engine Compartment (Turbo)

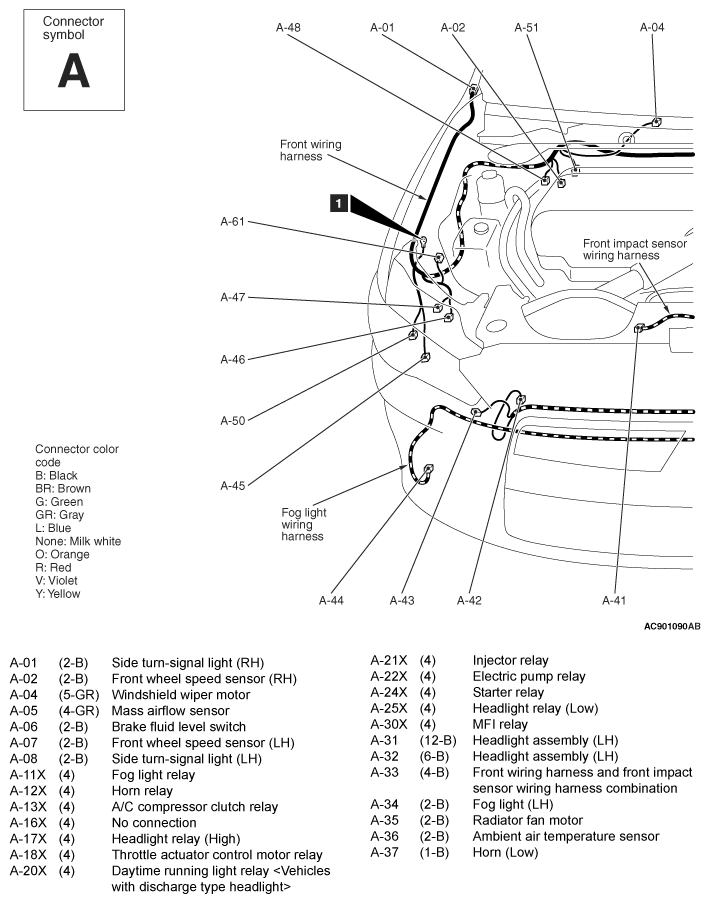

Fig 1: Engine Compartment Configuration Diagram - Turbo (1 Of 2)
G07546536Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

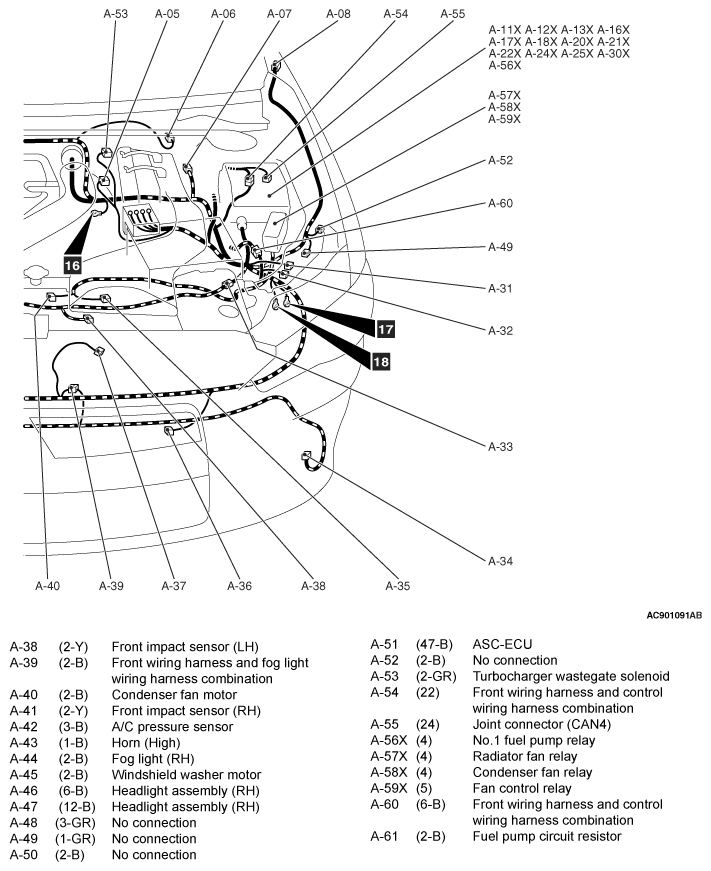

Fig 2: Engine Compartment Configuration Diagram - Turbo (2 Of 2)
G07546537Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
