OEM Wiring Harness Routing - Lancer
>>
Engine And Transaxle (Non-Turbo)
Engine And Transaxle (Non-Turbo)

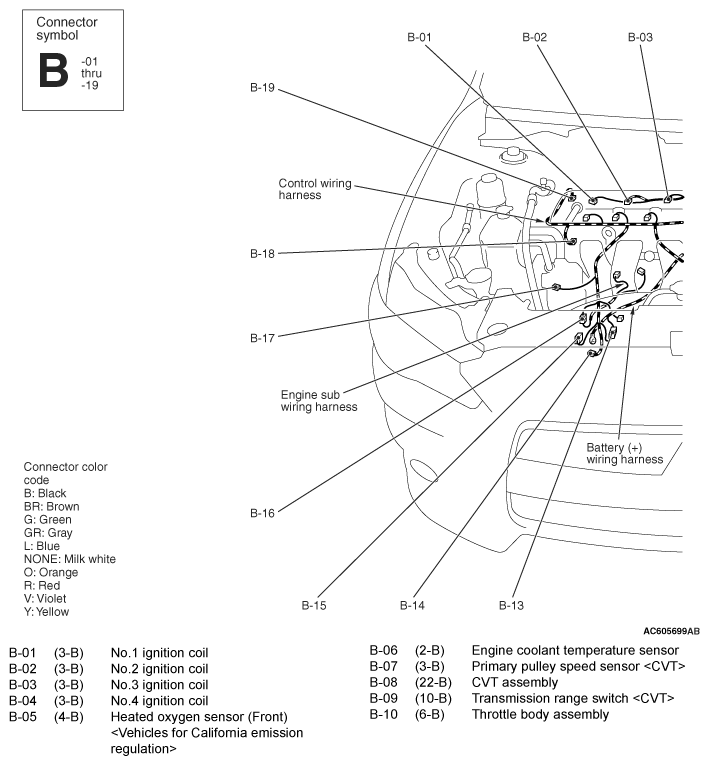

Fig 1: Engine And Transaxle Configuration Diagram - Non-Turbo (1 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

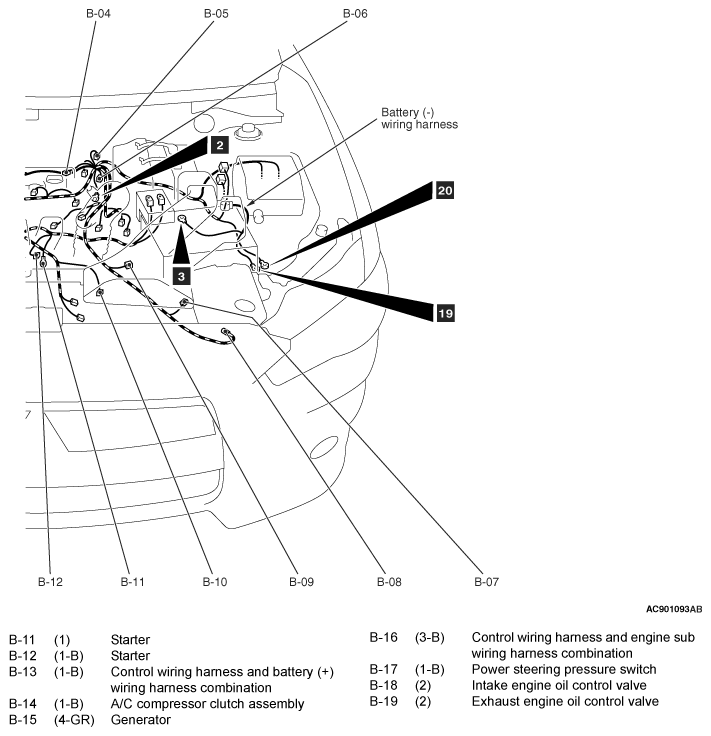

Fig 2: Engine And Transaxle Configuration Diagram - Non-Turbo (2 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

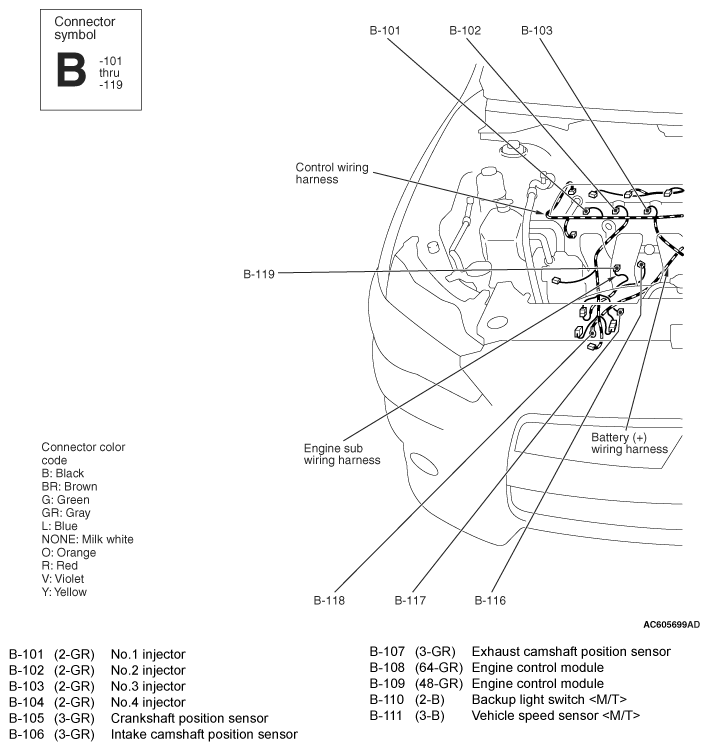

Fig 3: Engine And Transaxle Configuration Diagram - Non-Turbo (3 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

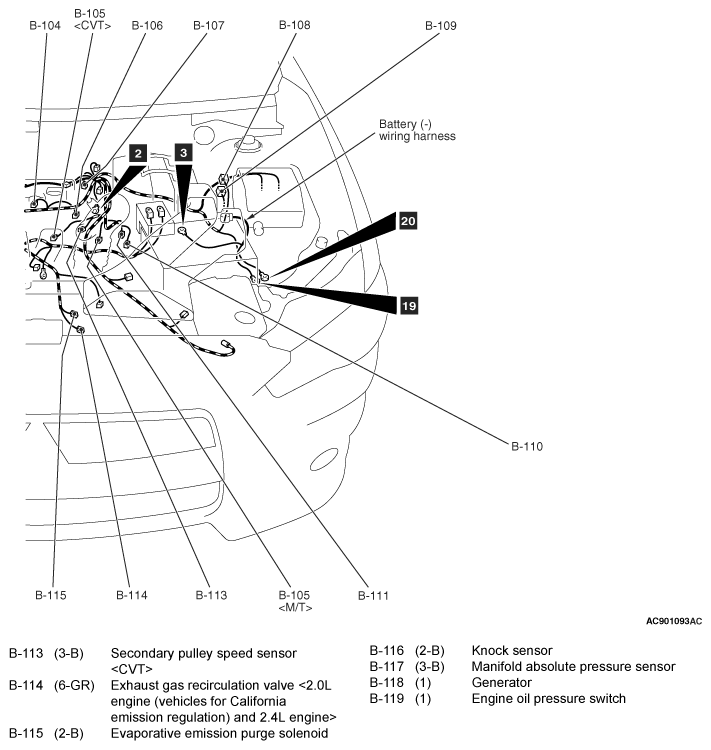

Fig 4: Engine And Transaxle Configuration Diagram - Non-Turbo (4 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
