OEM Wiring Harness Routing - Lancer: Door

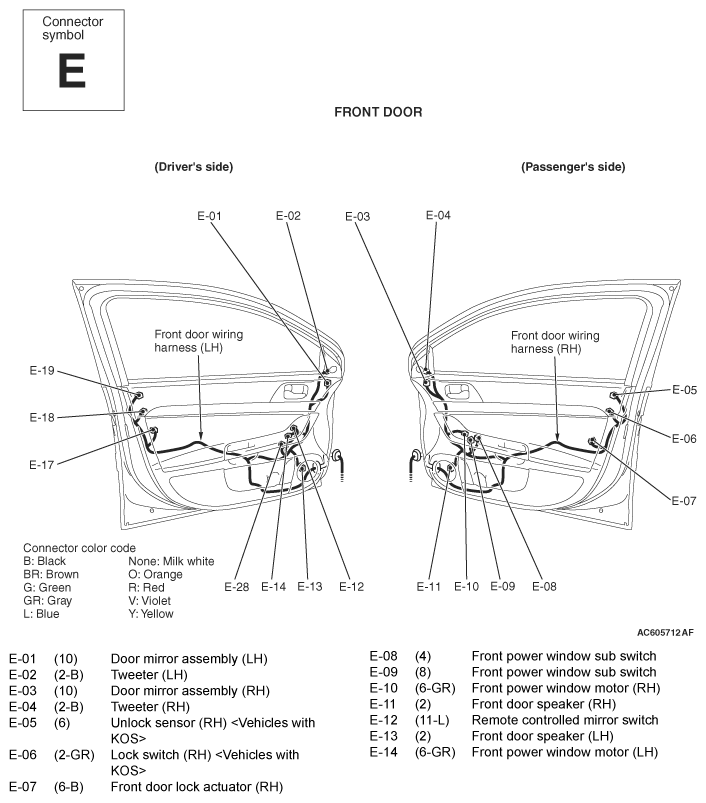

Fig 1: Door Configuration Diagram (1 Of 2)
G07546554Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

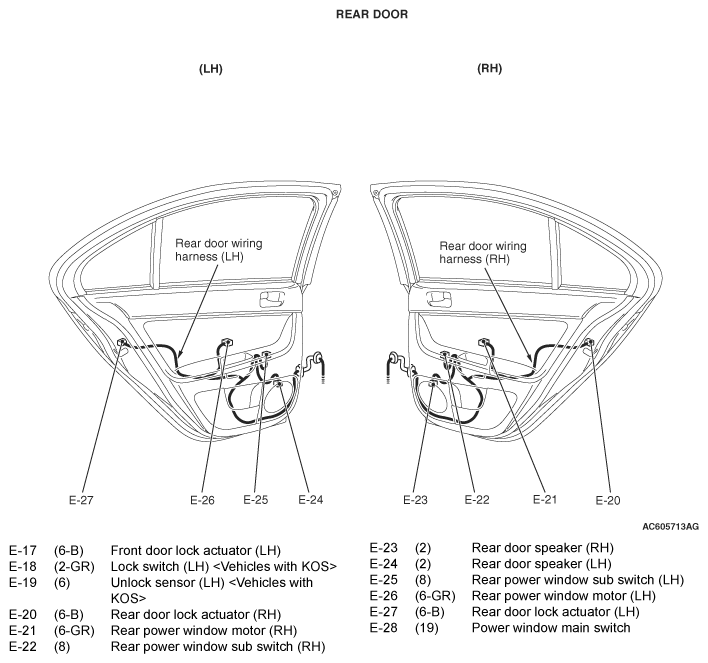

Fig 2: Door Configuration Diagram (2 Of 2)
G07546555Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
