Dash Panel

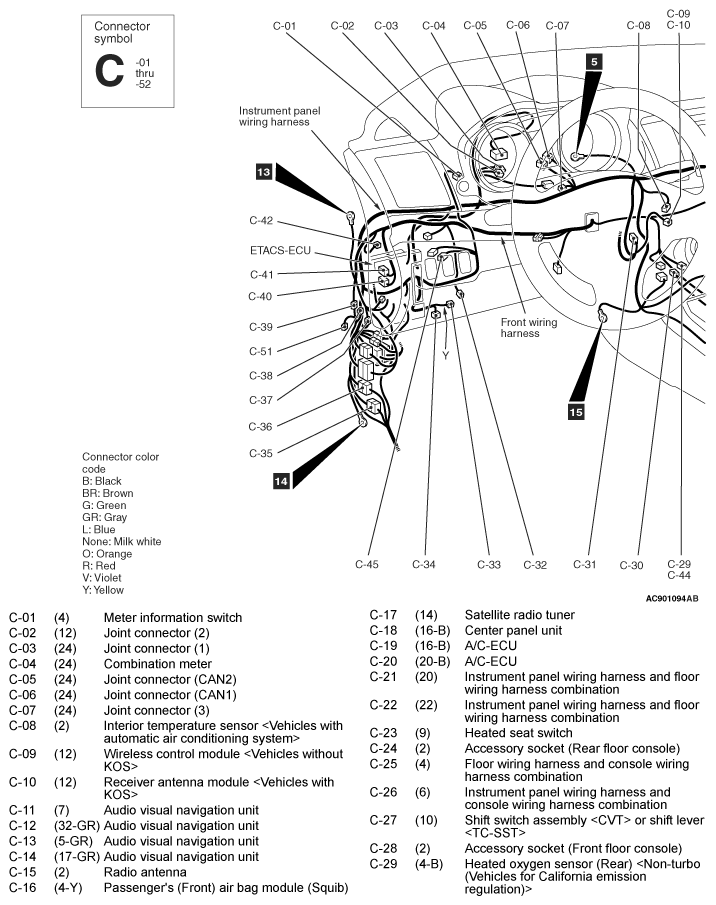

Fig 1: Dash Panel Configuration Diagram (1 Of 6)

G07546546

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

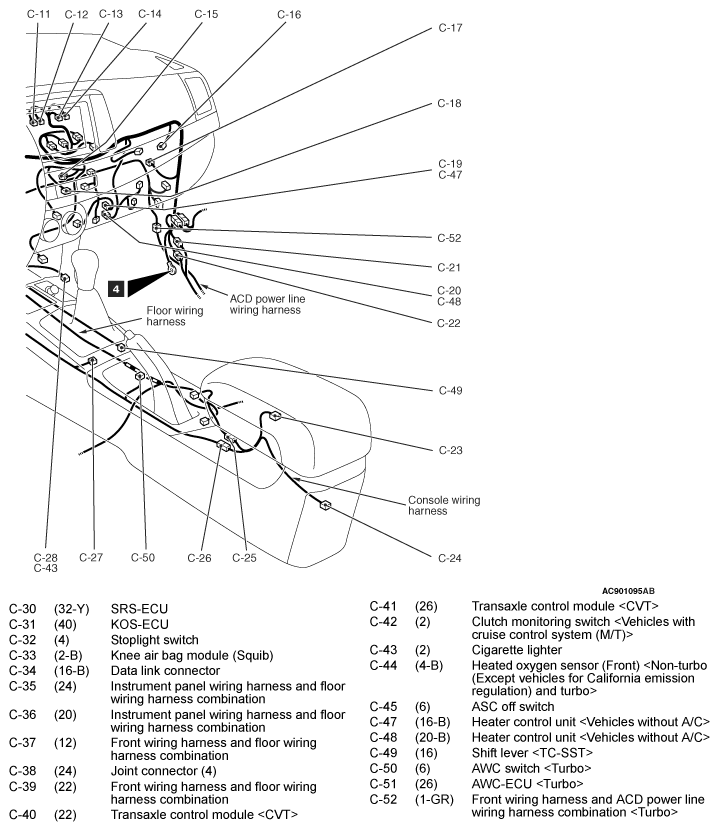

Fig 2: Dash Panel Configuration Diagram (2 Of 6)

G07546547

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

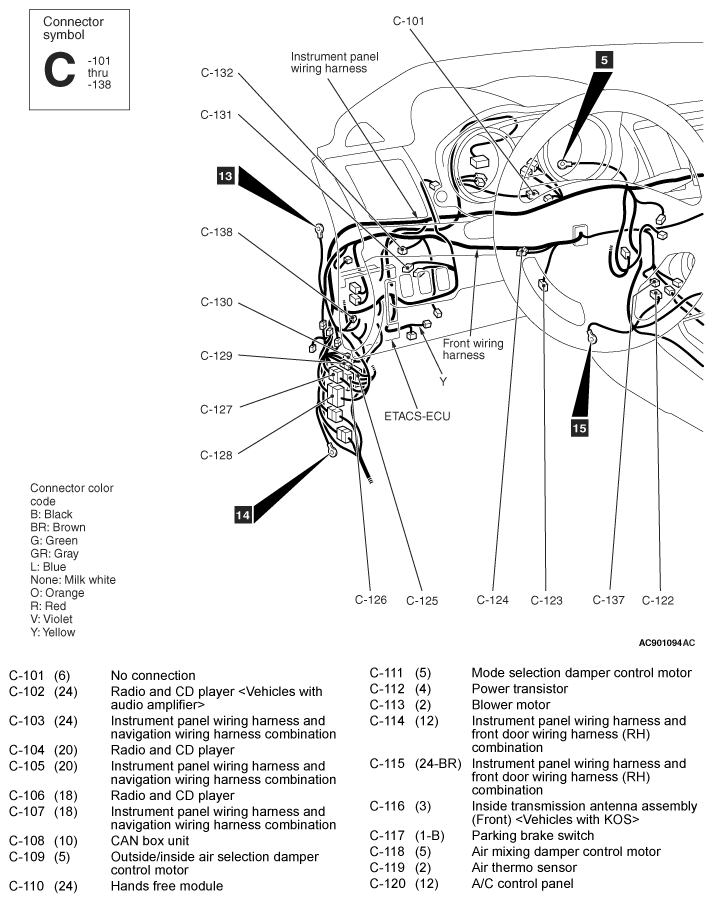

Fig 3: Dash Panel Configuration Diagram (3 Of 6)

G07546548

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

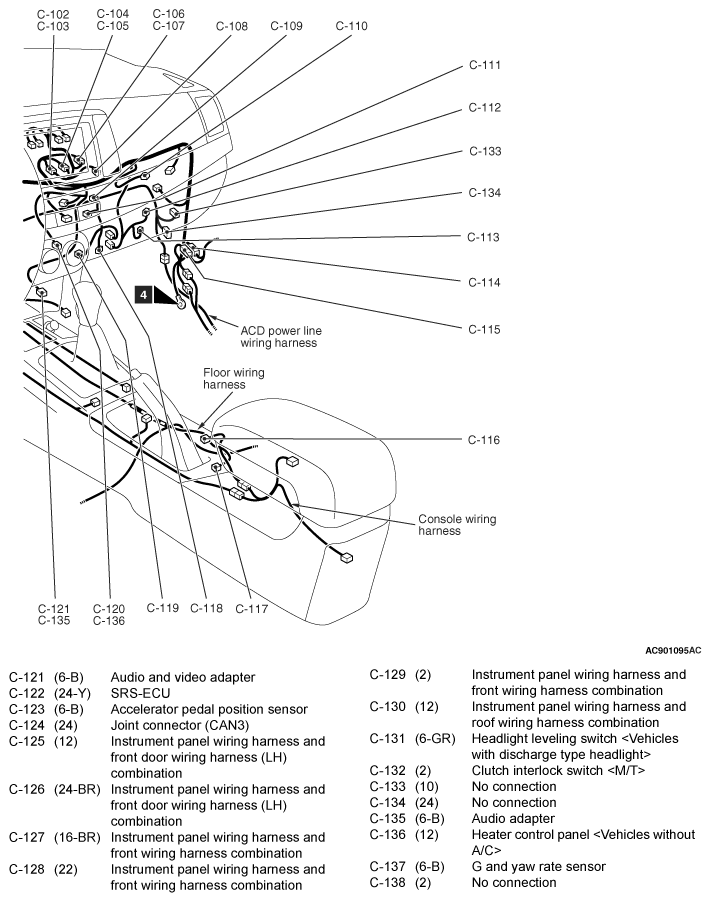

Fig 4: Dash Panel Configuration Diagram (4 Of 6)

G07546549

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

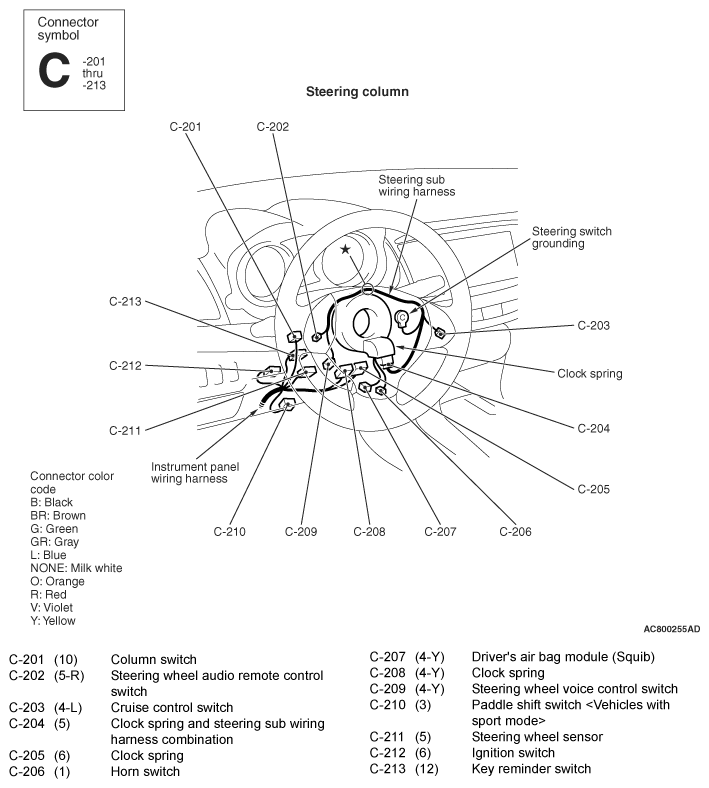

Fig 5: Dash Panel Configuration Diagram (5 Of 6)

G07546550

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

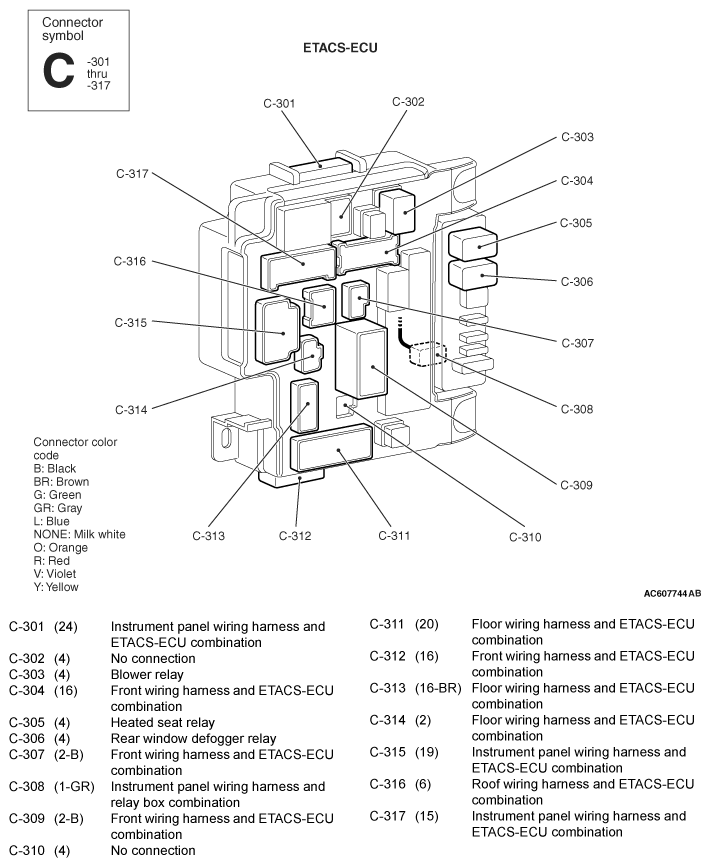

Fig 6: Dash Panel Configuration Diagram (6 Of 6)

G07546551

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
