Twin Clutch-SPORTRONIC Shift Transmission (TC-SST)

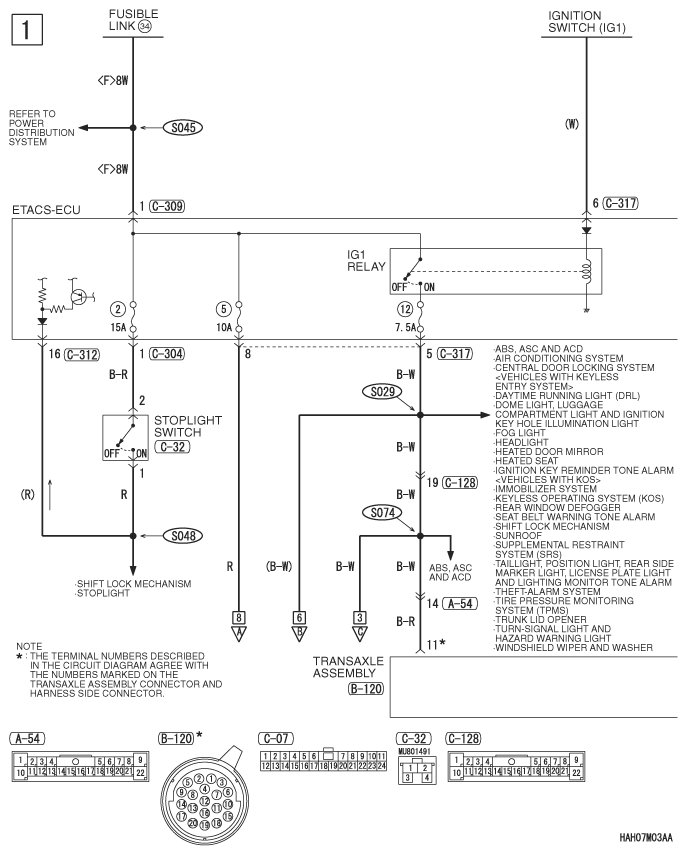

Fig 1: Twin Clutch-Sportronic Shift Transmission (TC-SST) - Circuit Diagram (1 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

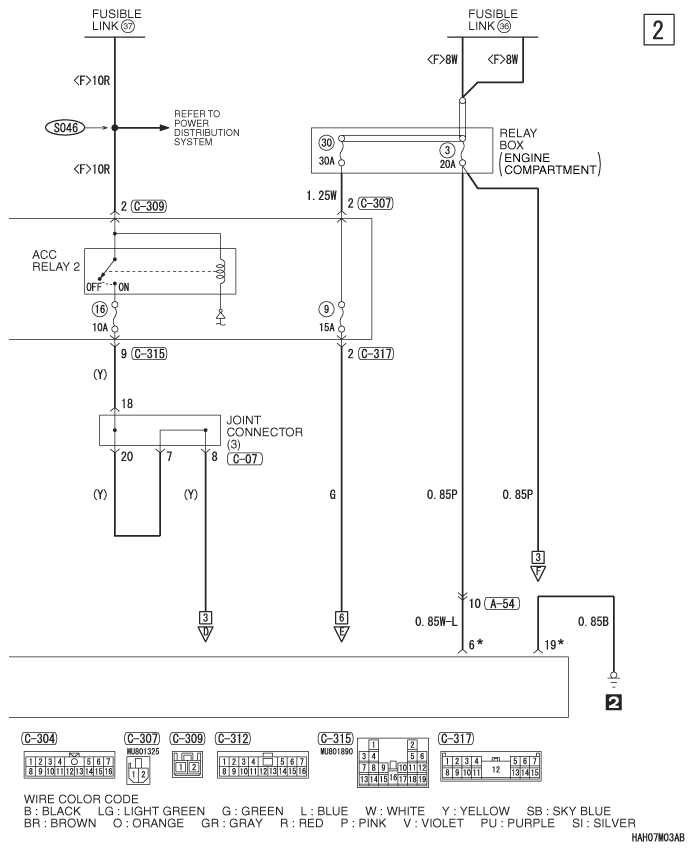

Fig 2: Twin Clutch-Sportronic Shift Transmission (TC-SST) - Circuit Diagram (2 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

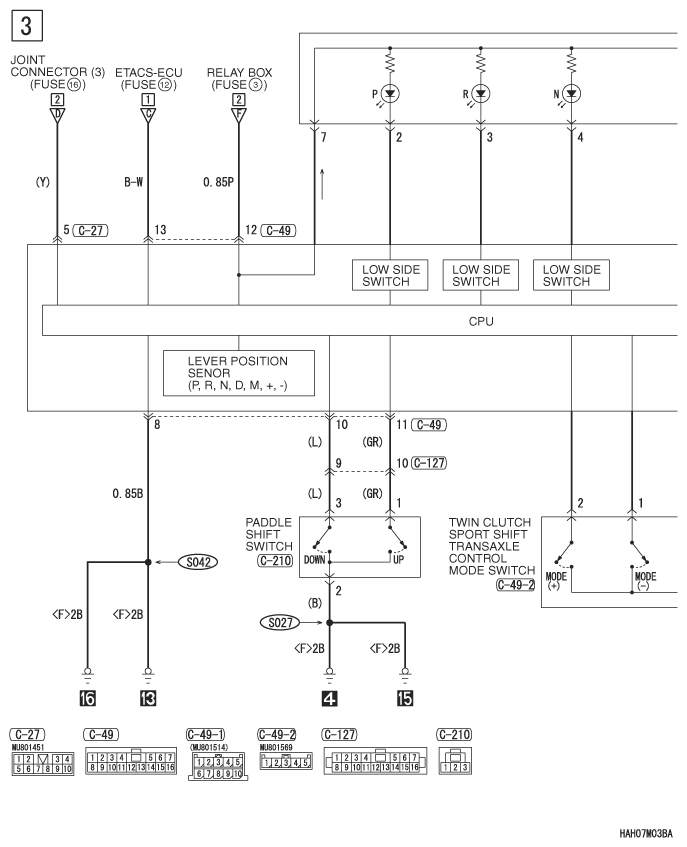

Fig 3: Twin Clutch-Sportronic Shift Transmission (TC-SST) - Circuit Diagram (3 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

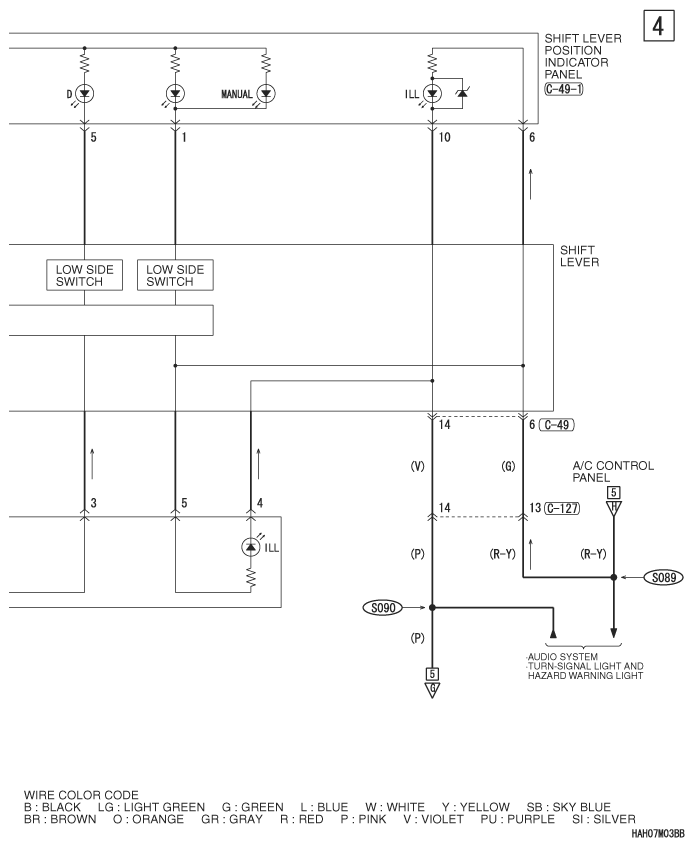

Fig 4: Twin Clutch-Sportronic Shift Transmission (TC-SST) - Circuit Diagram (4 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

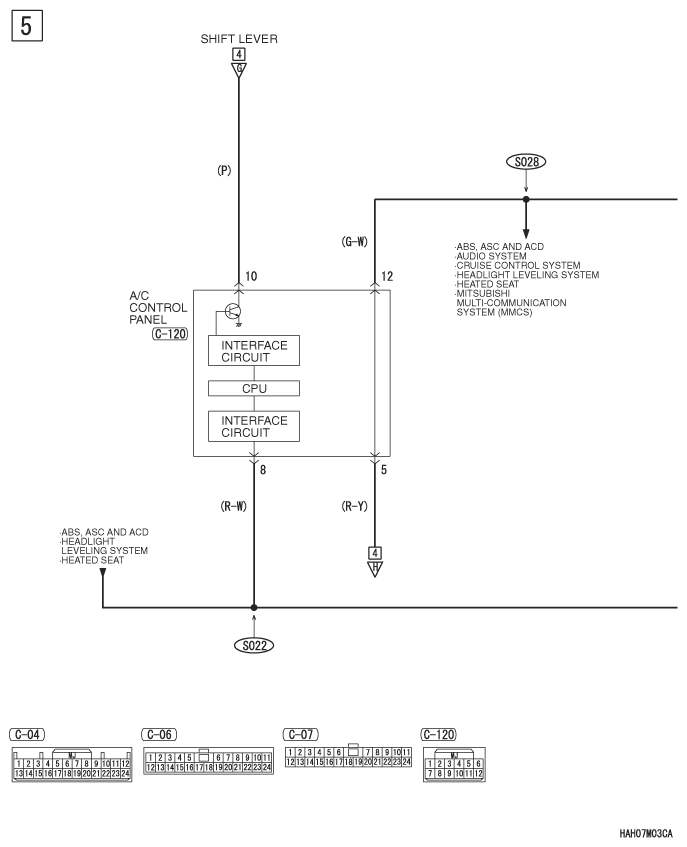

Fig 5: Twin Clutch-Sportronic Shift Transmission (TC-SST) - Circuit Diagram (5 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

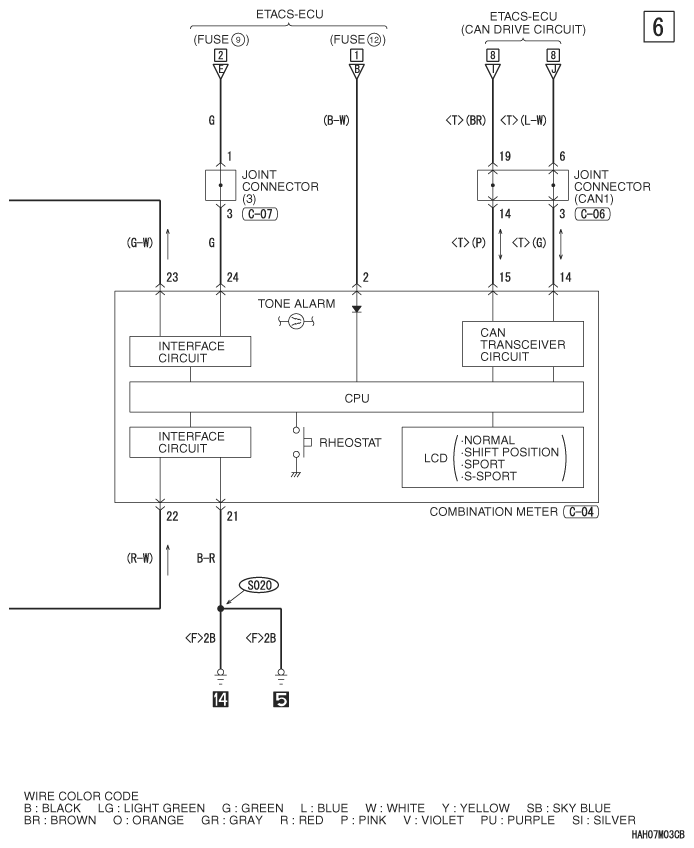

Fig 6: Twin Clutch-Sportronic Shift Transmission (TC-SST) - Circuit Diagram (6 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

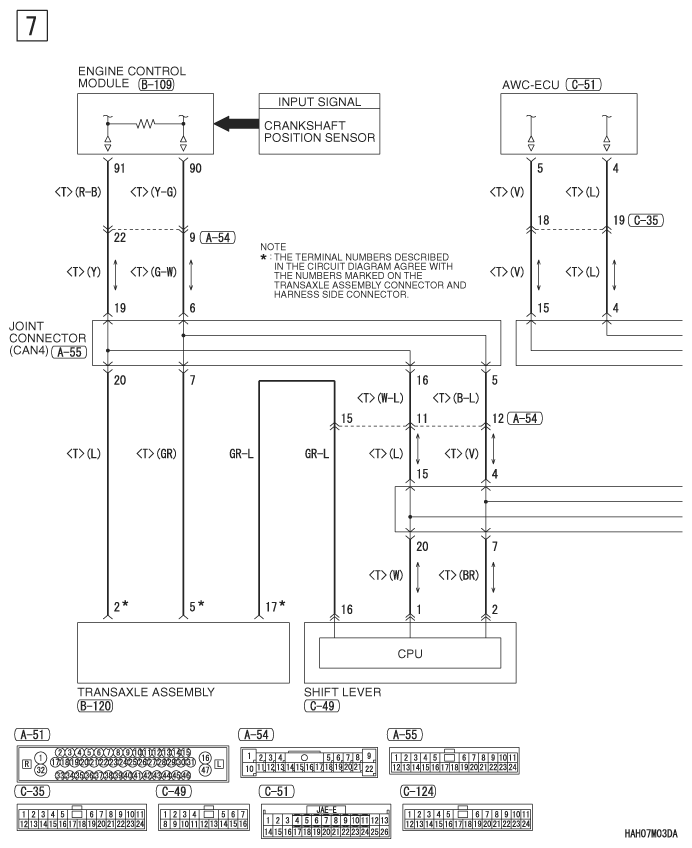

Fig 7: Twin Clutch-Sportronic Shift Transmission (TC-SST) - Circuit Diagram (7 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

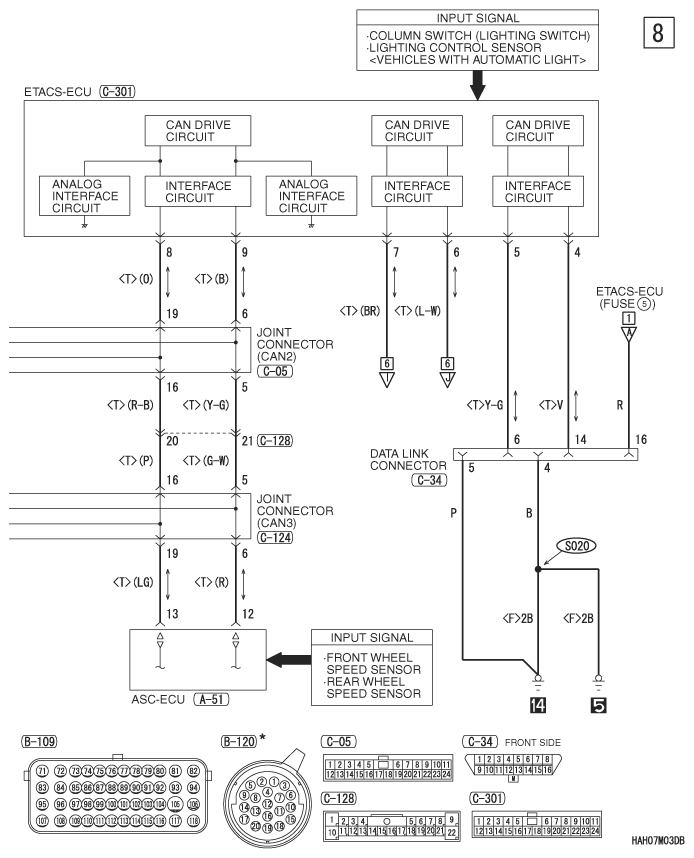

Fig 8: Twin Clutch-Sportronic Shift Transmission (TC-SST) - Circuit Diagram (8 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
