Taillight, Position Light, Rear Side Marker Light, License Plate Light And Lighting Monitor Tone Alarm

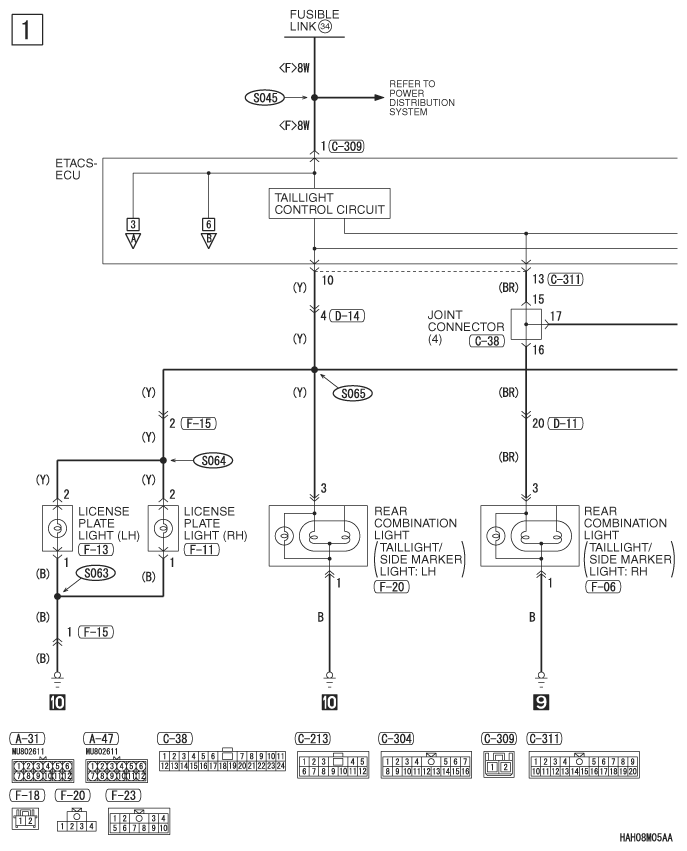

Fig 1: Taillight, Position, Rear Side Marker, License Plate Lights And Lighting Monitor Tone Alarm - Circuit Diagram (1 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

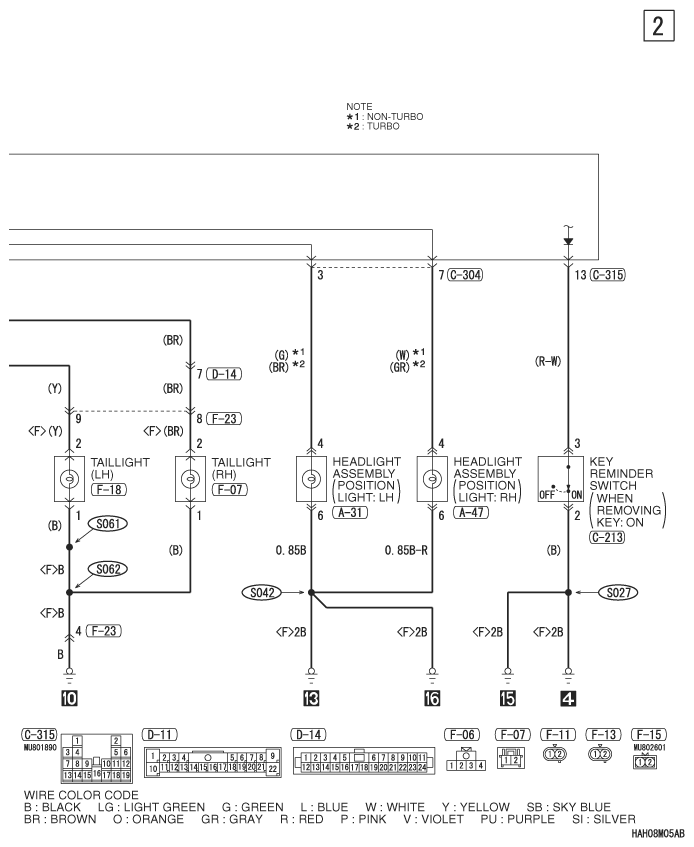

Fig 2: Taillight, Position, Rear Side Marker, License Plate Lights And Lighting Monitor Tone Alarm - Circuit Diagram (2 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

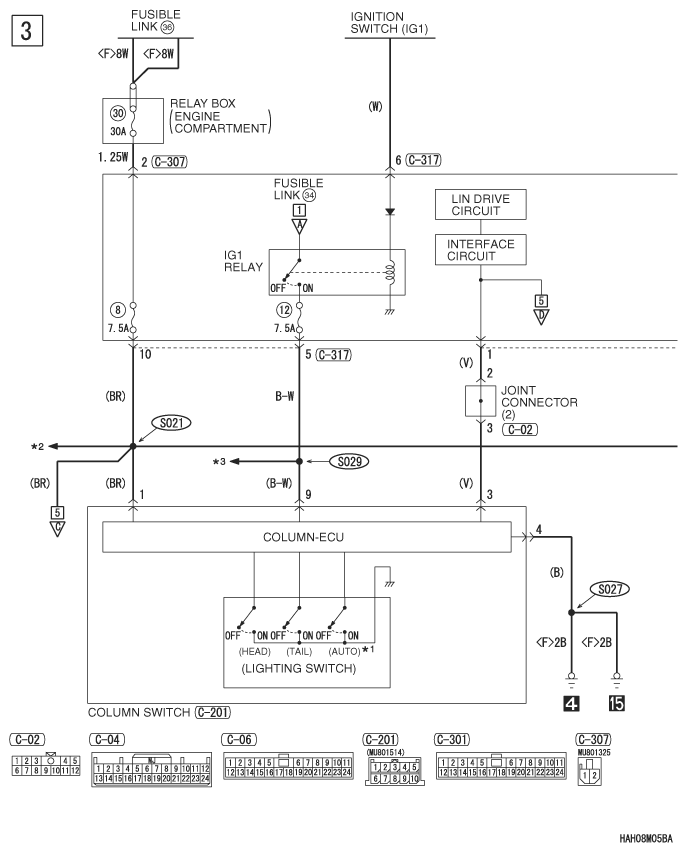

Fig 3: Taillight, Position, Rear Side Marker, License Plate Lights And Lighting Monitor Tone Alarm - Circuit Diagram (3 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

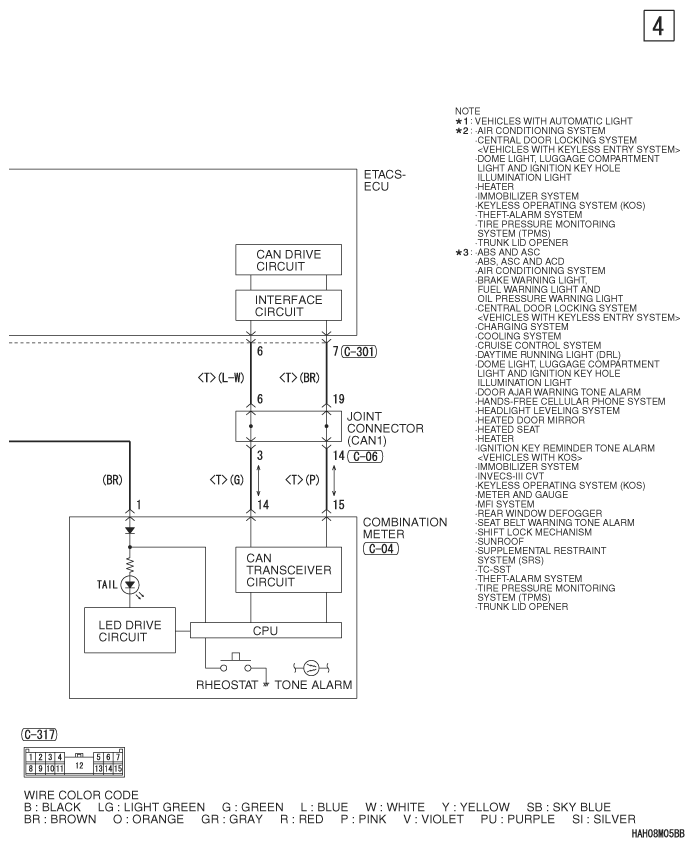

Fig 4: Taillight, Position, Rear Side Marker, License Plate Lights And Lighting Monitor Tone Alarm - Circuit Diagram (4 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

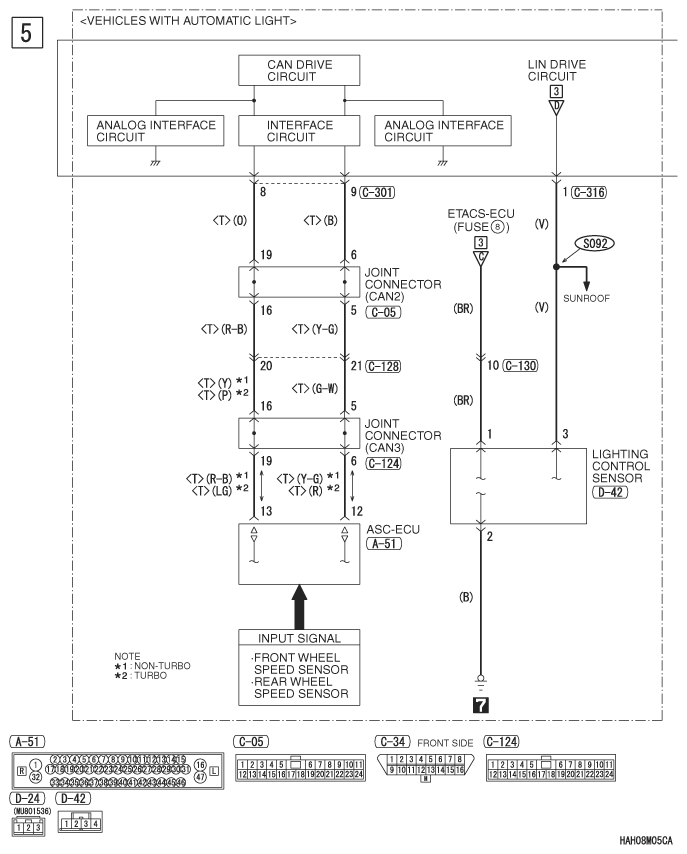

Fig 5: Taillight, Position, Rear Side Marker, License Plate Lights And Lighting Monitor Tone Alarm - Circuit Diagram (5 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

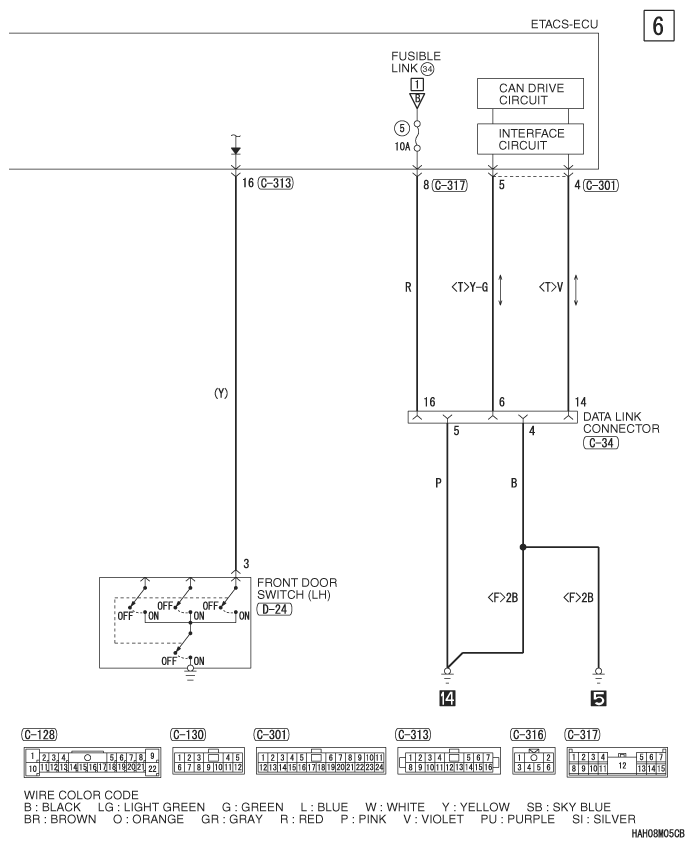

Fig 6: Taillight, Position, Rear Side Marker, License Plate Lights And Lighting Monitor Tone Alarm - Circuit Diagram (6 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
