OEM Circuit Diagrams - Lancer: Sunroof

Fig 1: Sunroof - Circuit Diagram (1 Of 2)
G07546954Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

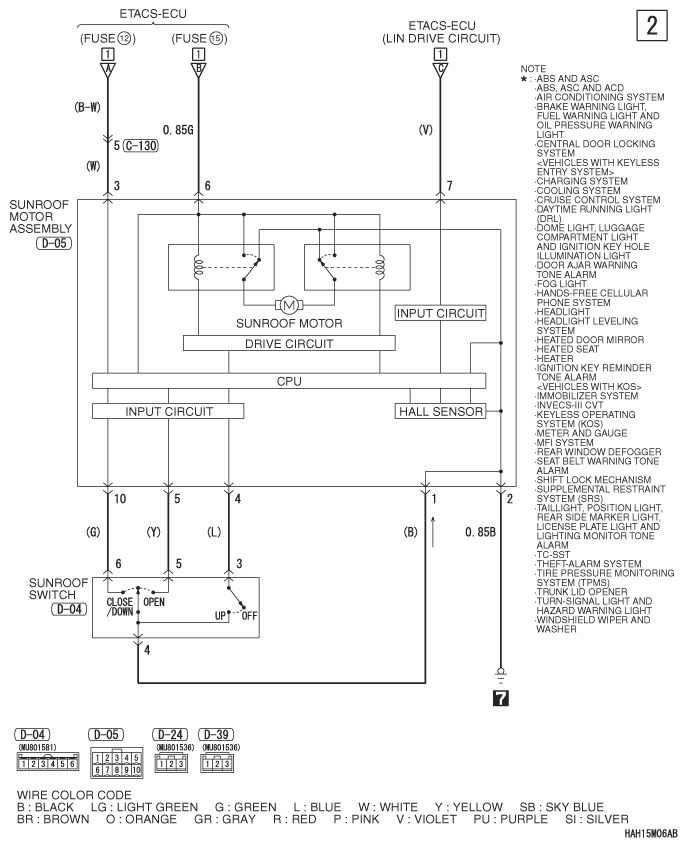

Fig 2: Sunroof - Circuit Diagram (2 Of 2)
G07546955Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
