Meter And Gauge (Non-Turbo)

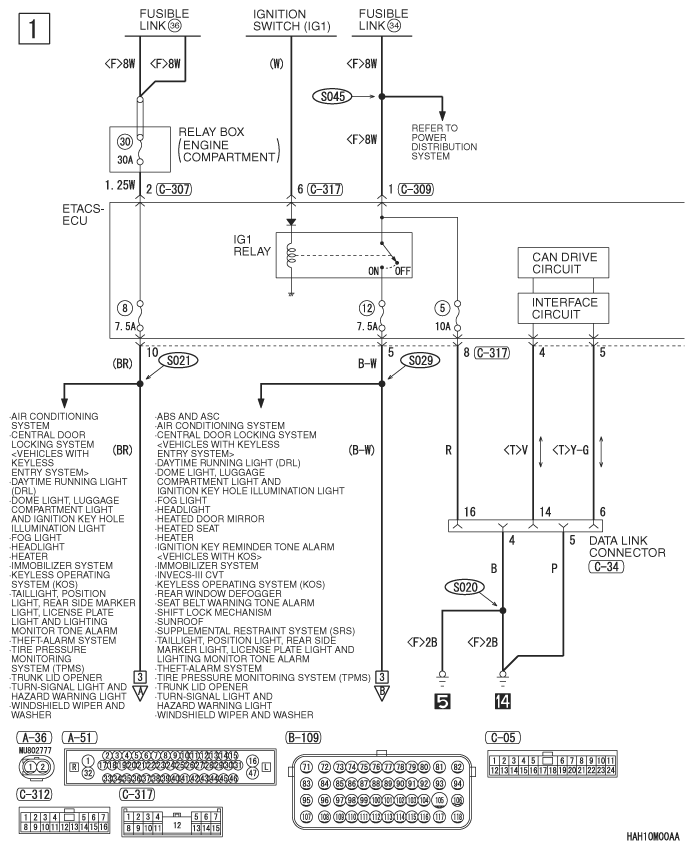

Fig 1: Meter And Gauge (Non-Turbo) - Circuit Diagram (1 Of 4)
G07546760Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

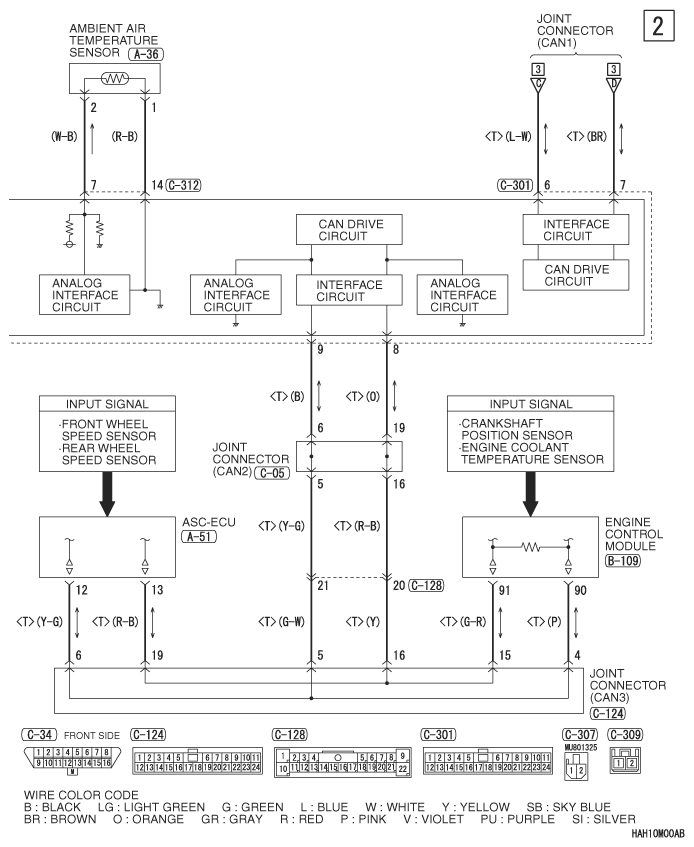

Fig 2: Meter And Gauge (Non-Turbo) - Circuit Diagram (2 Of 4)
G07546761Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

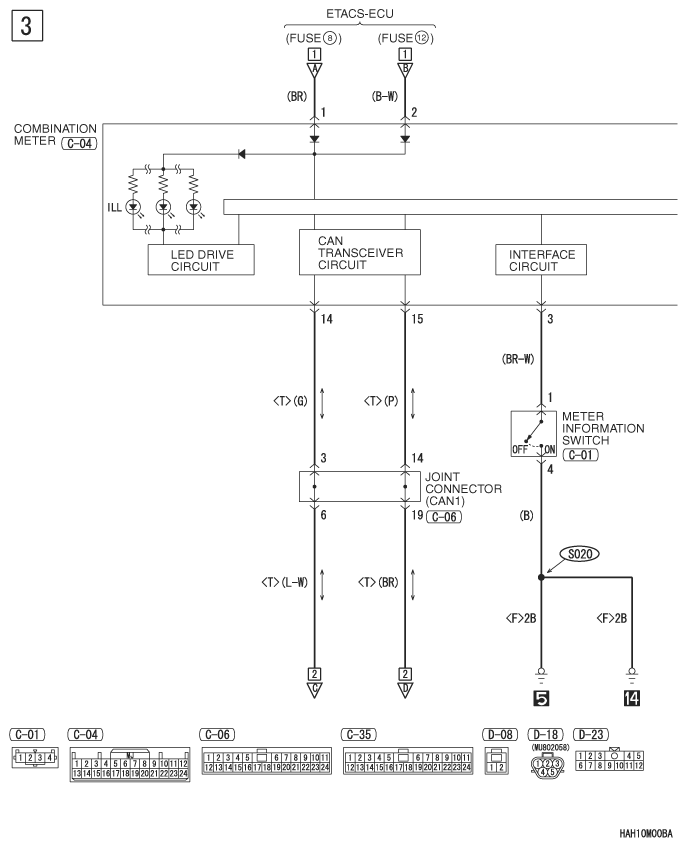

Fig 3: Meter And Gauge (Non-Turbo) - Circuit Diagram (3 Of 4)
G07546762Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

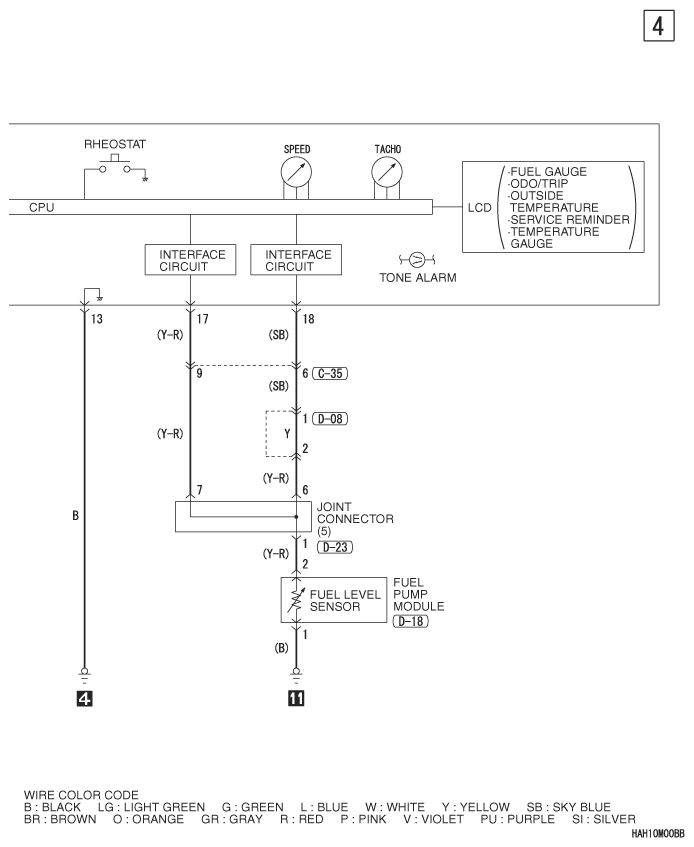

Fig 4: Meter And Gauge (Non-Turbo) - Circuit Diagram (4 Of 4)
G07546763Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
