OEM Circuit Diagrams - Lancer: Horn

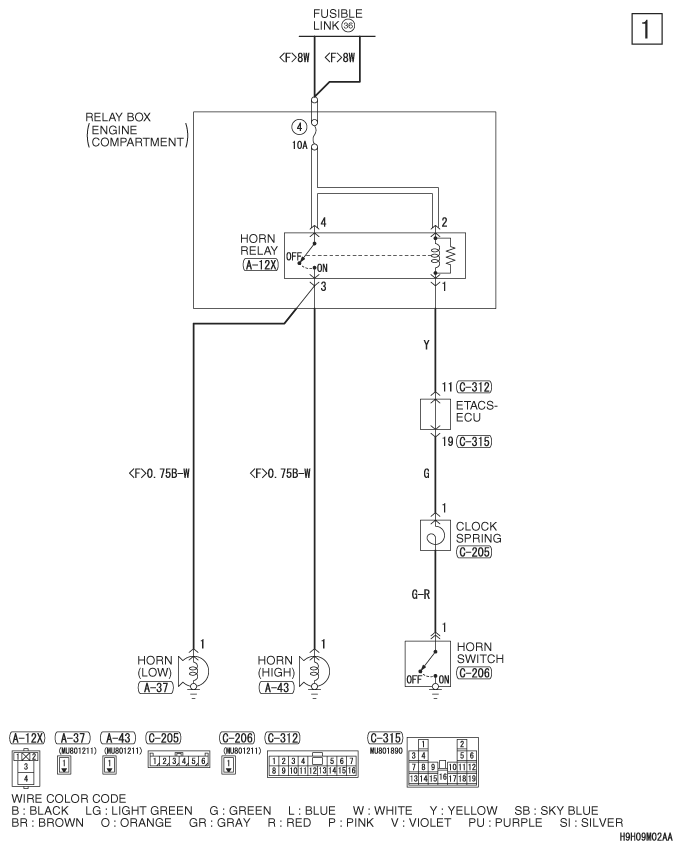

Fig 1: Horn - Circuit Diagram

G07545876

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
