OEM Circuit Diagrams - Lancer: Heater

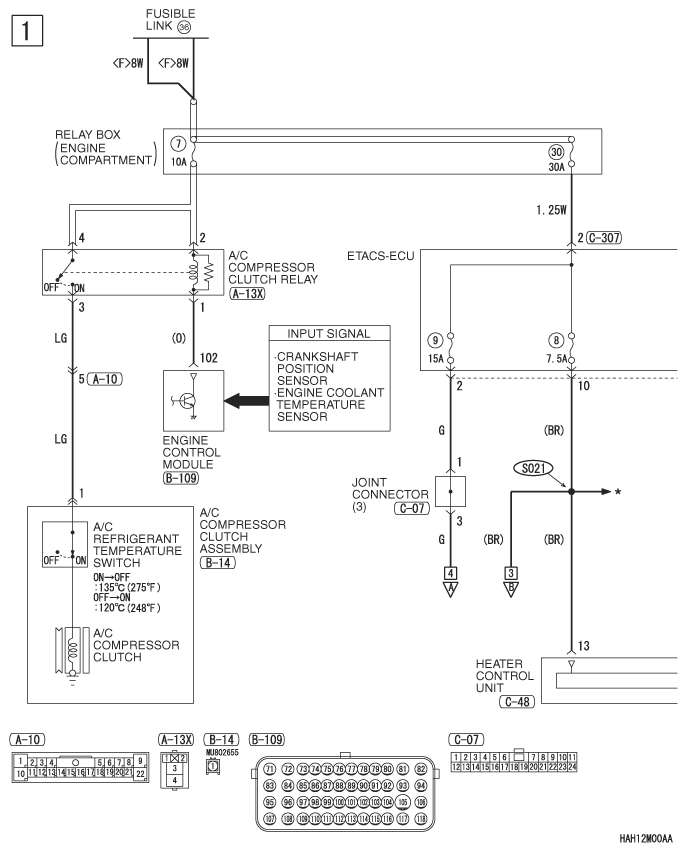

Fig 1: Heater - Circuit Diagram (1 Of 9)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

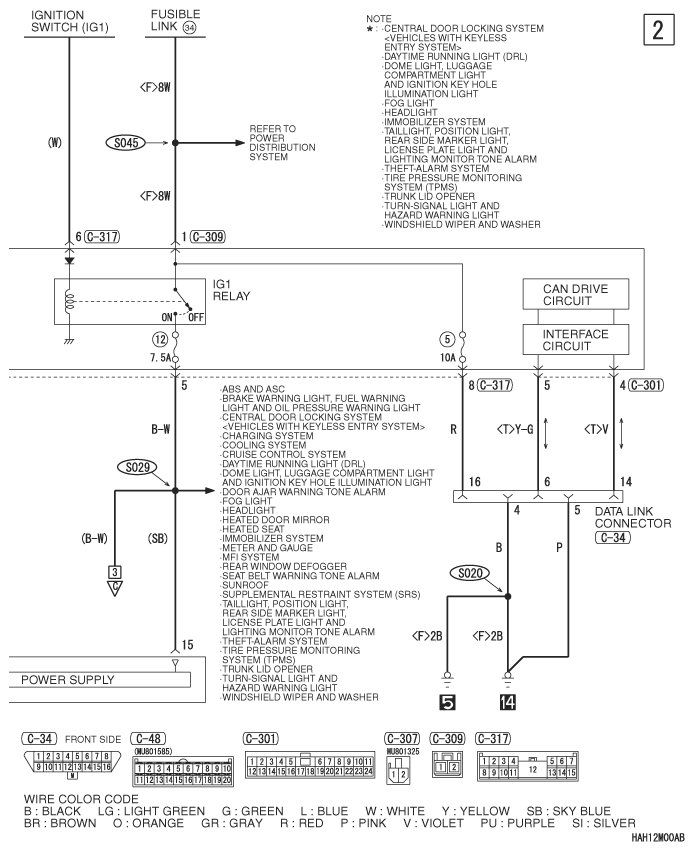

Fig 2: Heater - Circuit Diagram (2 Of 9)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

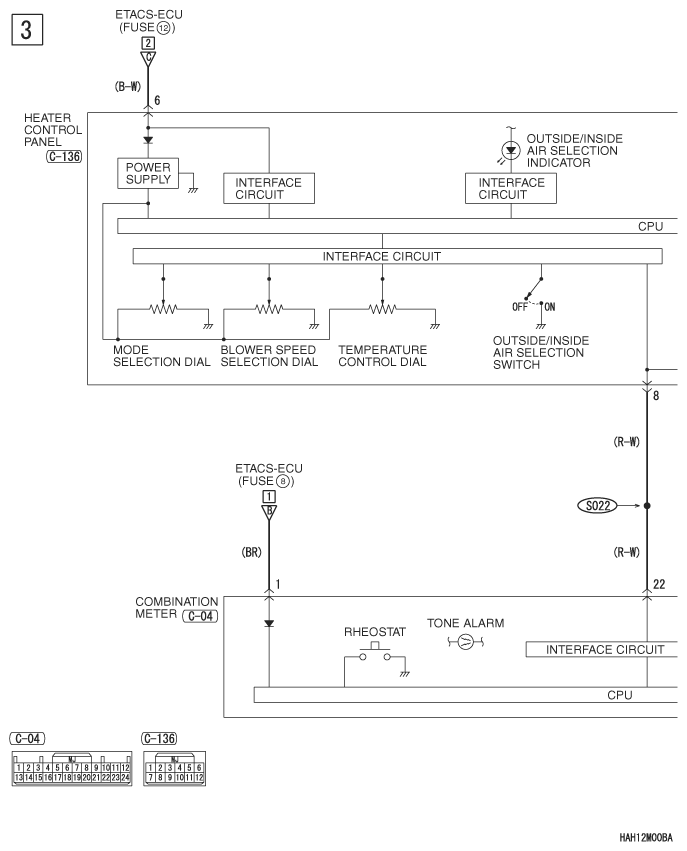

Fig 3: Heater - Circuit Diagram (3 Of 9)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

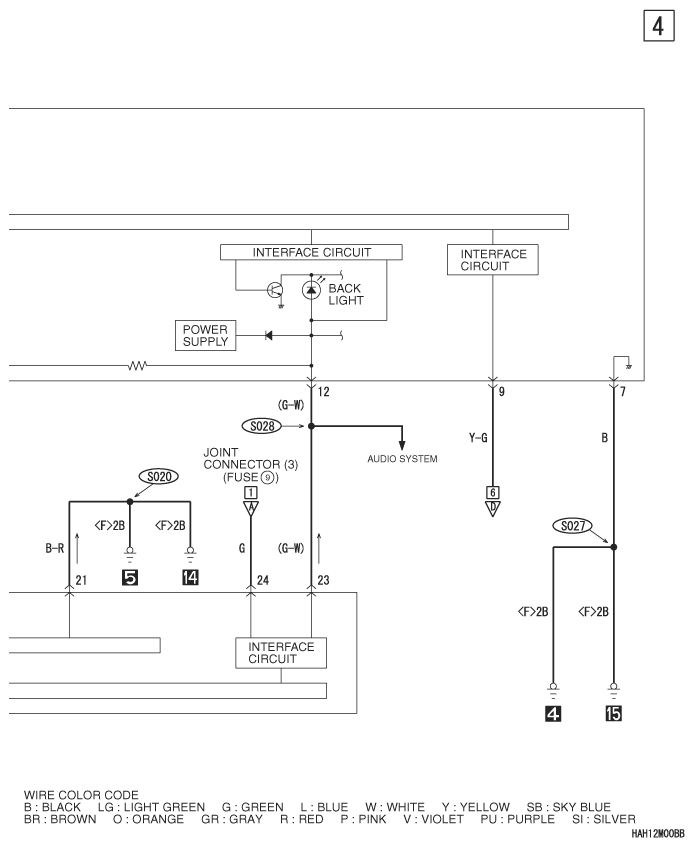

Fig 4: Heater - Circuit Diagram (4 Of 9)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

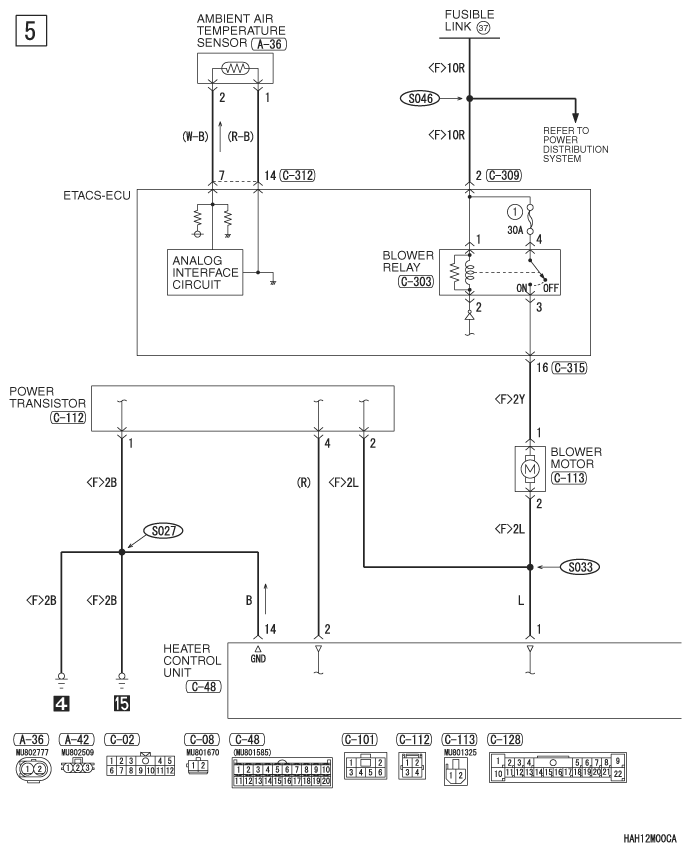

Fig 5: Heater - Circuit Diagram (5 Of 9)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

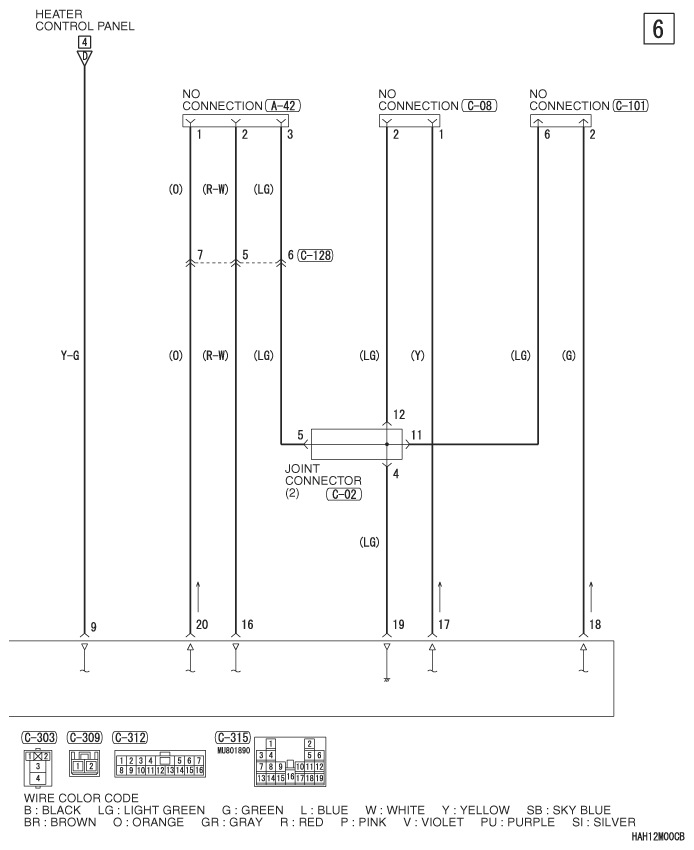

Fig 6: Heater - Circuit Diagram (6 Of 9)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

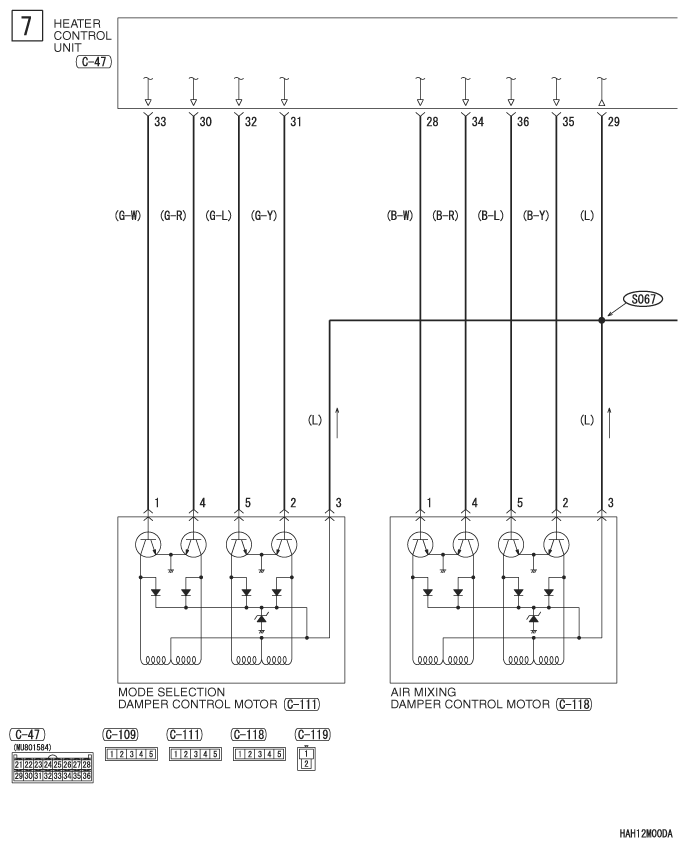

Fig 7: Heater - Circuit Diagram (7 Of 9)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

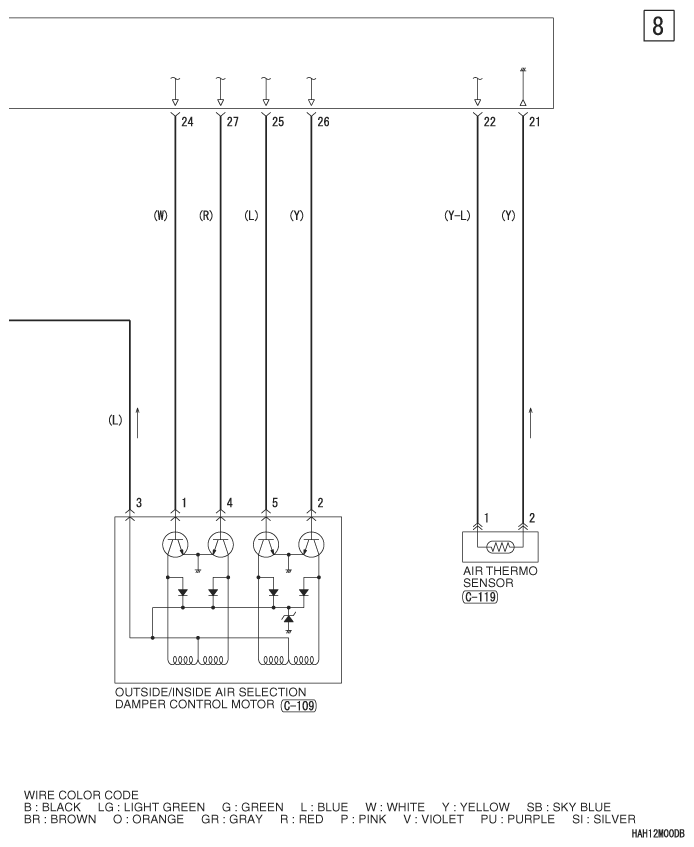

Fig 8: Heater - Circuit Diagram (8 Of 9)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

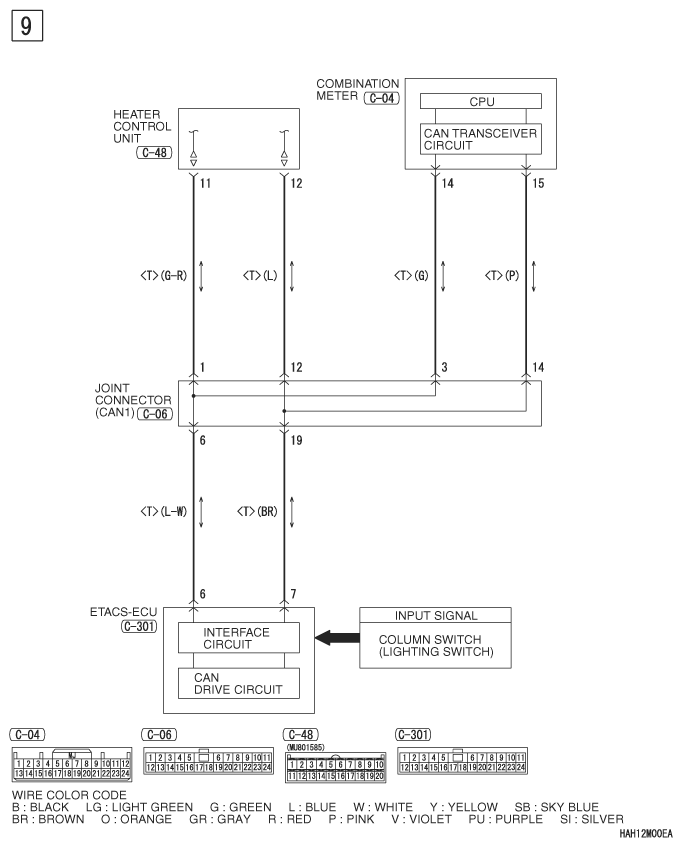

Fig 9: Heater - Circuit Diagram (9 Of 9)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
