Heated Seat

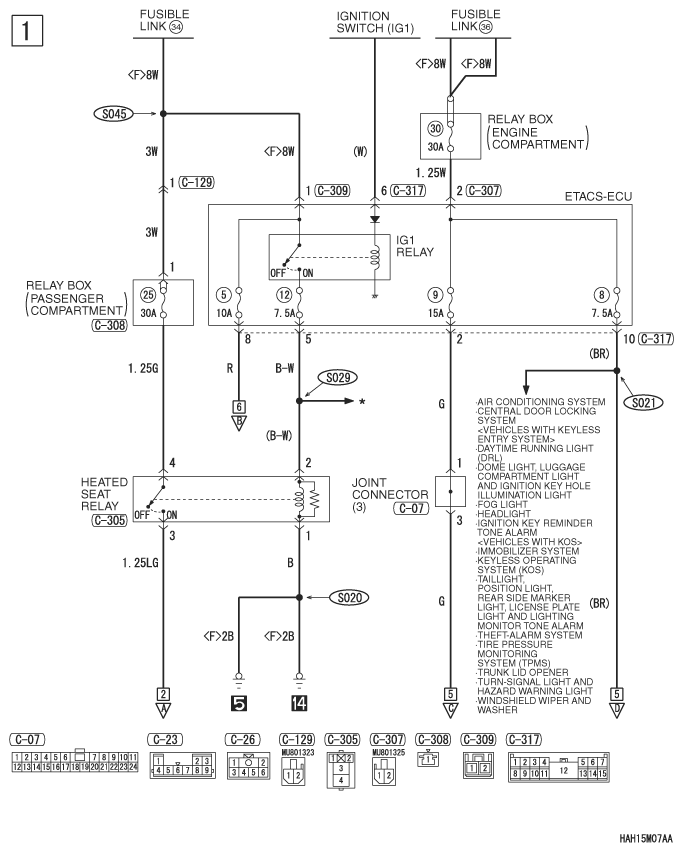

Fig 1: Heated Seat - Circuit Diagram (1 Of 6)

G07546956

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

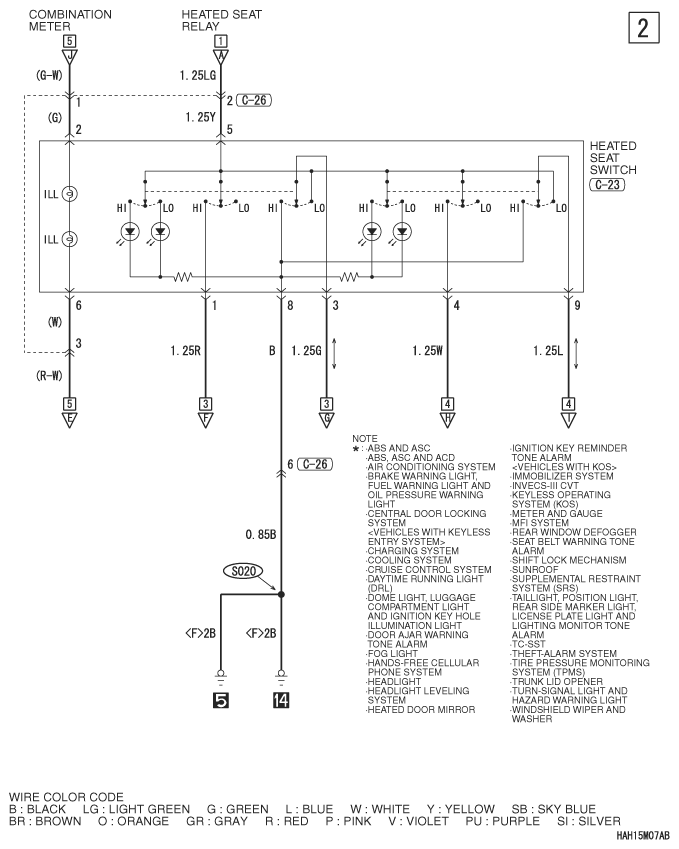

Fig 2: Heated Seat - Circuit Diagram (2 Of 6)

G07546957

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

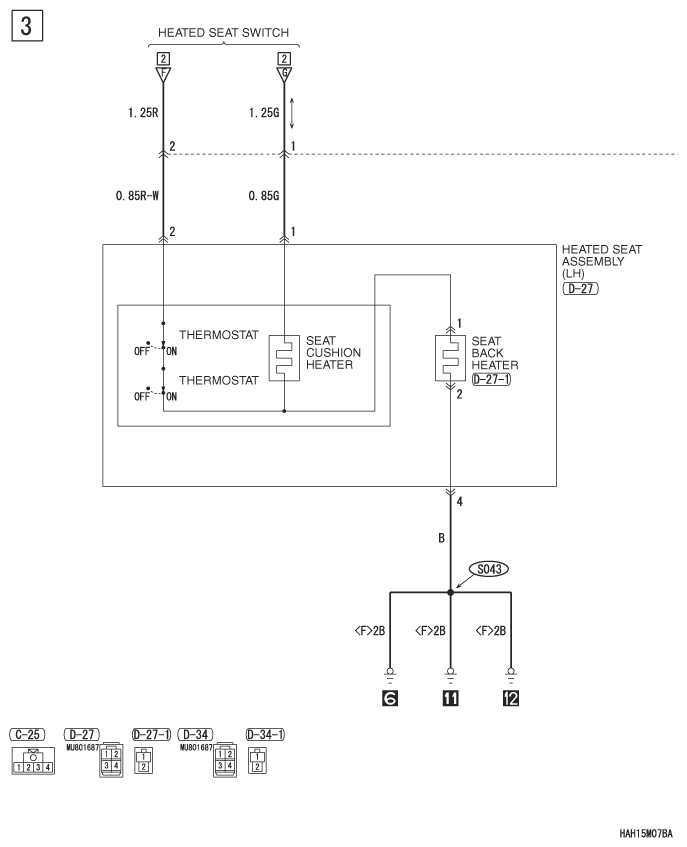

Fig 3: Heated Seat - Circuit Diagram (3 Of 6)

G07546958

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

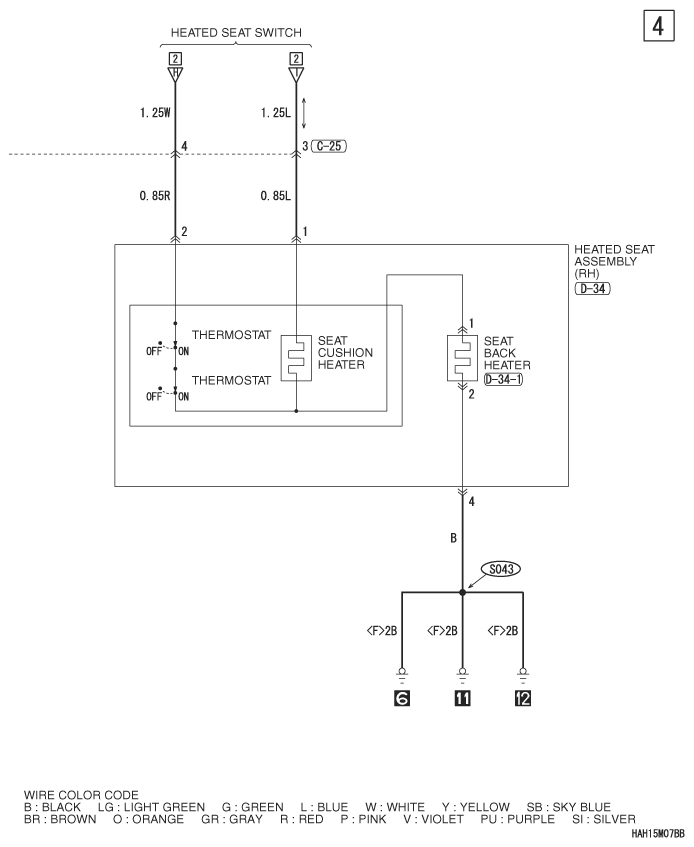

Fig 4: Heated Seat - Circuit Diagram (4 Of 6)

G07546959

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

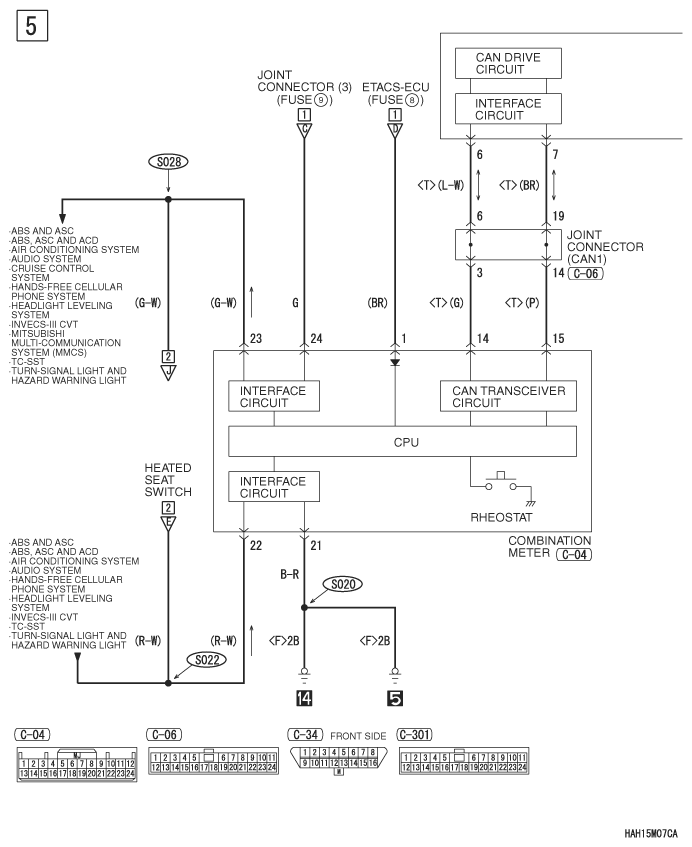

Fig 5: Heated Seat - Circuit Diagram (5 Of 6)

G07546960

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

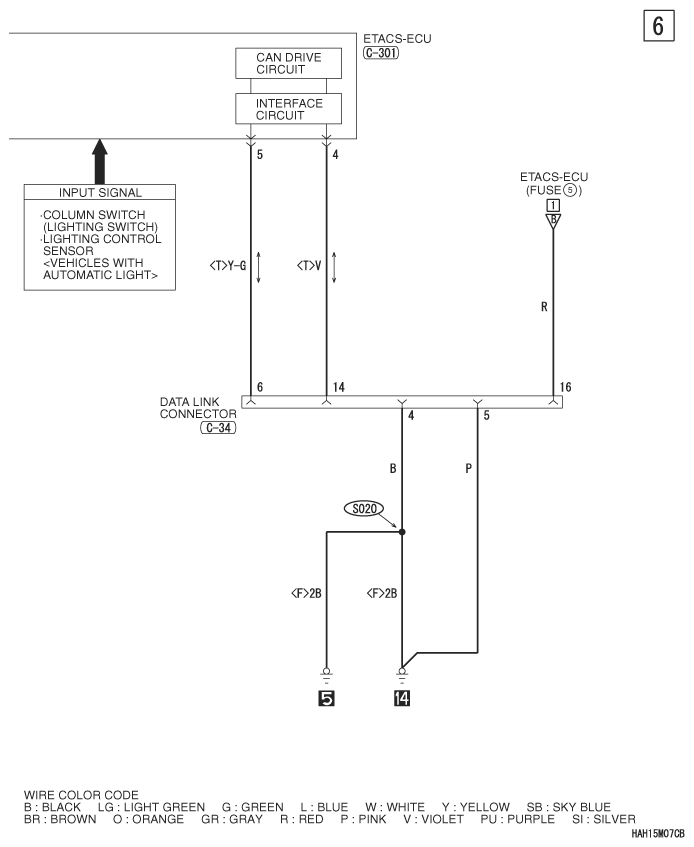

Fig 6: Heated Seat - Circuit Diagram (6 Of 6)

G07546961

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
