Heated Door Mirror

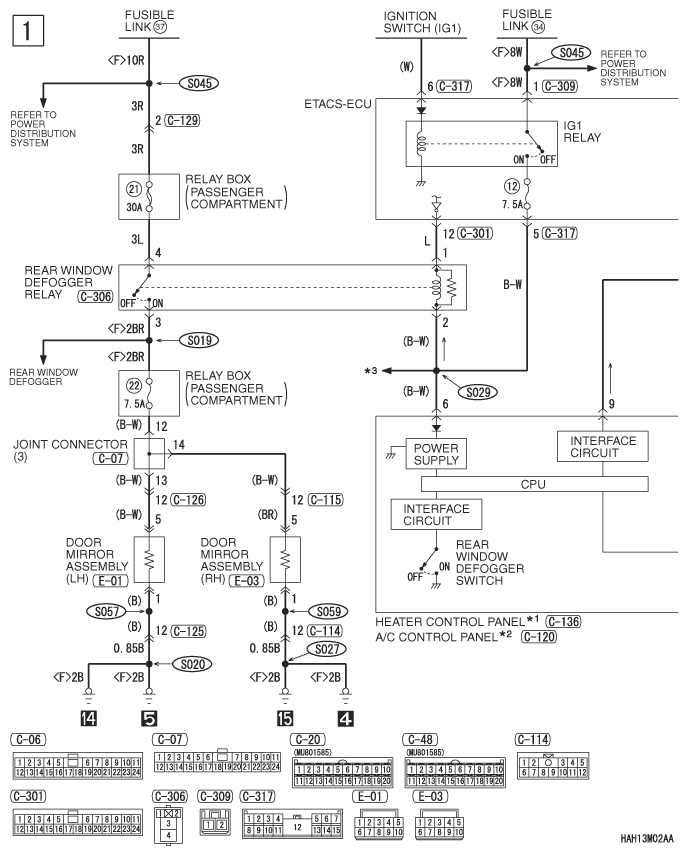

Fig 1: Heated Door Mirror - Circuit Diagram (1 Of 2)
G07546857Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

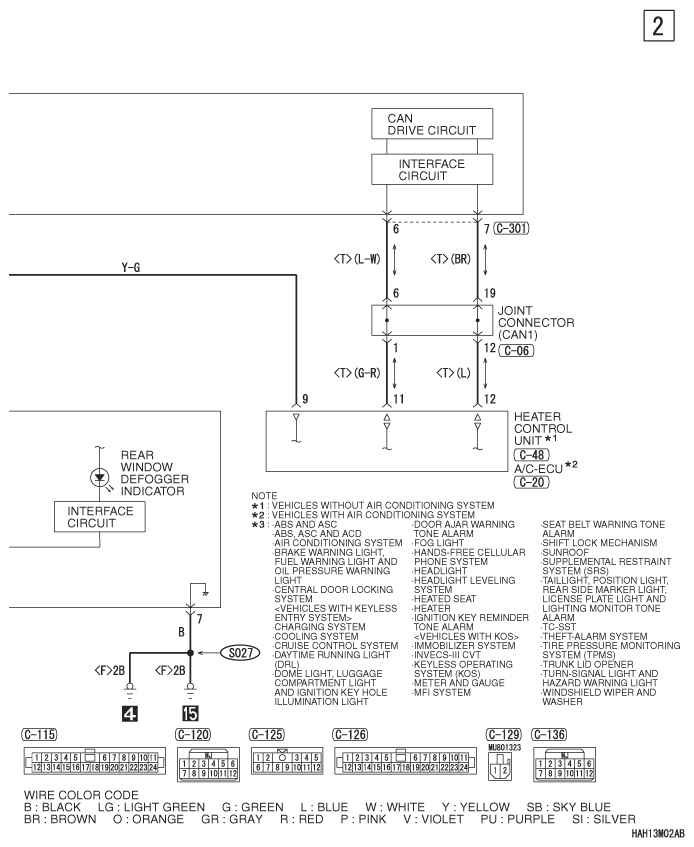

Fig 2: Heated Door Mirror - Circuit Diagram (2 Of 2)
G07546858Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
