Fusible Link And Fuse Location Charts
FUSIBLE LINK AND FUSE DESCRIPTION CHART (ENGINE COMPARTMENT)
| No. | Power supply circuit | Name | Rated capacity (A) | Housing color | Load circuit |
|---|---|---|---|---|---|
| 1 | Fusible link No.36 | Fuse | 15 | Blue | Fog light and fog light relay |
| 2 | 7.5 | Brown | Engine control module | ||
| 3 | 20 | Yellow | Primary pulley speed sensor < CVT >, secondary pulley speed sensor < CVT >, shift lever < TC-SST >, transaxle assembly < TC-SST > and transaxle control module < CVT > | ||
| 4 | 10 | Red | Horn (Low, High) and horn relay | ||
| 5 | 7.5 | Brown | Generator | ||
| 6 | 20 | Yellow | - | ||
| 7 | 10 | Red | A/C compressor clutch assembly and A/C compressor clutch relay | ||
| 8 | 15 | Blue | Engine control module | ||
| 9 | - | - | - | ||
| 10 | - | - | - | ||
| 11 | - | - | - | ||
| 12 | - | - | - | ||
| 13 | 10 | Red | Daytime running light relay and headlight assembly (LH, RH) < Discharge type > | ||
| 14 | Headlight relay (High) | 10 | Red | Headlight assembly (LH) | |
| 15 | 10 | Red | Headlight assembly (RH) | ||
| 16 | Headlight relay (Low) | 20 | Yellow | Headlight assembly (LH) < Discharge type > | |
| 17 | 20 | Yellow | Headlight assembly (RH) < Discharge type > | ||
| 18 | 10 | Red | Headlight assembly (LH, RH) and headlight leveling switch | ||
| 19 | 10 | Red | Headlight assembly (RH) < Halogen type > | ||
| 20 | MFI relay | - | - | - | |
| 21 | 10 | Red | No.1 to 4 ignition coil | ||
| 22 | 20 | Yellow | Engine control module, engine oil control valve, evaporative emission purge solenoid, evaporative emission ventilation solenoid, exhaust gas recirculation valve < 2.0L engine (Vehicles for California) and 2.4L engine >, heated oxygen sensor (front, rear), heated oxygen sensor (3rd) < Non-turbo (Vehicles for California) >, mass airflow sensor, No.1 to 4 injector, throttle actuator control motor relay, turbocharger wastegate solenoid < Turbo > and vehicle speed sensor < M/T > | ||
| 23 | 15 | Blue | Fuel pump circuit resistor < Turbo >, fuel pump module and No.1 fuel pump relay < Turbo > | ||
| 24 | Fusible link No.36 | Fusible link | 30 | Pink | Starter |
| 25 | - | - | - | ||
| 26 | 40 | Green | ASC-ECU | ||
| 27 | 30 | Pink | ASC-ECU | ||
| 28 | 30 | Pink | Condenser fan motor, condenser fan relay and fan control relay | ||
| 29 | 40 | Green | Radiator fan motor and radiator fan relay | ||
| 30 | Fuse | 30 | Green | Fuse No.7 to 9 in passenger compartment | |
| 31 | 30 | Green | Audio amplifier | ||
| 32 | MFI relay | - | - | - | |
| 33 | Battery/Generator | Fusible link | 120 | - | Fusible link No.37/Fusible link No.34 to 36 |
| 34 | Battery/Fusible link No.33 | 80 | - | Fuse No.2, 4, 5, 10 to 12, 14, 15, 17, 18, 20, 25 in passenger compartment, ACC relay 3 and ETACS-ECU | |
| 35 | 80 | - | Electric pump < Turbo > | ||
| 36 | 120 | - | Fuse No.1 to 8, 13 to 19, 21 to 23, 30, 31 in engine compartment, fusible link No. 24, 26 to 29 in engine compartment, headlight relay (High), headlight relay (Low) and MFI relay | ||
| 37 | Fusible link No.33/ Generator | 80 | - | Fusible link No.1 and 21, Fuse No. 3, 6, 13, 16, 19 in passenger compartment, ACC relay 2 and blower relay |

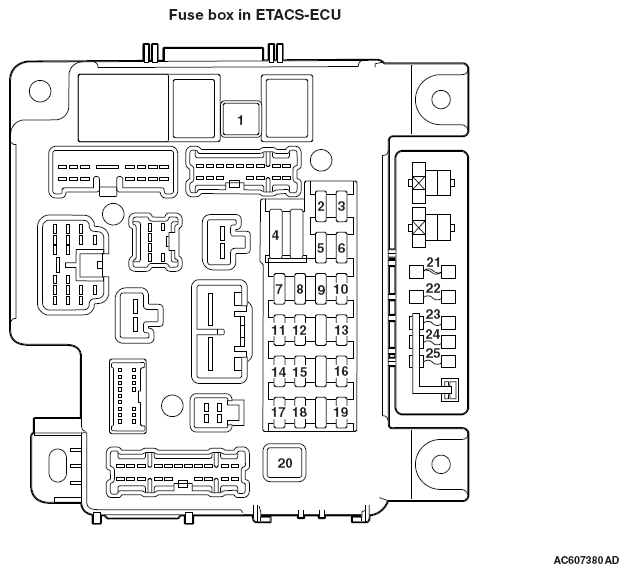

FUSIBLE LINK AND FUSE DESCRIPTION CHART (PASSENGER COMPARTMENT)
| No. | Power supply circuit | Name | Rated capacity (A) | Housing color | Load circuit |
|---|---|---|---|---|---|
| 1 | Fusible link No.37 | Fusible link | 30 | Pink | Blower motor |
| 2 | Fusible link No.34 | Fuse | 15 | Blue | High-mounted stoplight, rear combination light, shift lever < TC-SST > and shift switch assembly < CVT > |
| 3 | Fusible link No.37 | 10 | Red | - | |
| 4 | ETACS-ECU (ACC relay 3) | 30 | Green | ETACS-ECU, windshield washer motor and windshield wiper motor | |
| 5 | Fusible link No.34 | 10 | Red | Data link connector | |
| 6 | Fusible link No.37 | 20 | Yellow | ETACS-ECU, front door lock actuator, rear door lock actuator and trunk lid lock actuator | |
| 7 | Fusible link No.30 | 15 | Blue | Audio visual navigation unit, CAN box unit, center panel unit, hands free module, radio/CD player and satellite radio tuner | |
| 8 | 7.5 | Brown | A/C-ECU, AWC-ECU, column switch, combination meter, ETACS-ECU, heater control unit < Vehicles without A/C >, key reminder switch, KOS-ECU, lighting control sensor, power window relay and wireless control module < Vehicles without KOS > | ||
| 9 | 15 | Blue | Center panel unit, combination meter and key reminder switch | ||
| 10 | Fusible link No.34 | 15 | Blue | ETACS-ECU | |
| 11 | ETACS-ECU (ACC relay 3) | - | - | - | |
| 12 | ETACS-ECU (IG1 relay) | 7.5 | Brown | A/C control panel, A/C-ECU, ASC-ECU, AWC-ECU, center panel unit, column switch, combination meter, CVT control relay, heated seat relay, heater control panel < Vehicles without A/C >, heater control unit < Vehicles without A/C >, KOS-ECU, rear window defogger relay, shift lever < TC-SST >, shift switch assembly < CVT >, SRS-ECU, steering wheel sensor, sunroof motor assembly, transaxle assembly < TC-SST > and wireless control module < Vehicles without KOS > | |
| 13 | ETACS-ECU (ACC relay 2) | 15 | Blue | Accessory socket (front floor console) and cigarette lighter (front floor console) | |
| 14 | Fusible link No.34 | 10 | Red | ETACS-ECU | |
| 15 | 20 | Yellow | Sunroof motor assembly | ||
| 16 | ETACS-ECU (ACC relay 2) | 10 | Red | Audio visual navigation unit, CAN box unit, door mirror assembly, radio/CD player and shift lever < TC-SST > | |
| 17 | Fusible link No.34 | 10 | Red | ASC-ECU, AWC-ECU and occupant classification-ECU | |
| 18 | ETACS-ECU (IG1 relay) | 7.5 | Brown | Audio visual navigation unit, backup light, transaxle control module < CVT >, shift lever < TC-SST > and SRS-ECU | |
| 19 | Fusible link No.37 | 15 | Blue | Accessory socket (rear floor console) | |
| 20 | Fusible link No.34 | Fusible link | 30 | Pink | Front power window motor (RH), power window main switch and rear power window motor |
| 21 | Fusible link No.37 | 30 | Pink | Fuse No.22 in passenger compartment and rear window defogger | |
| 22 | Rear window defogger relay | Fuse | 7.5 | Brown | Door mirror assembly |
| 23 | Fusible link No.34 | - | - | - | |
| 24 | - | - | - | ||
| 25 | 30 | Green | Heated seat assembly and heated seat switch |

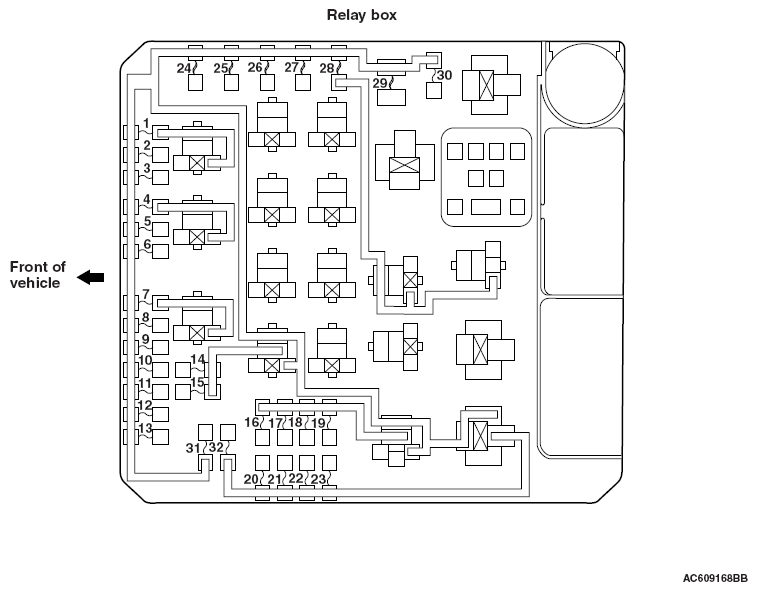

CENTRALIZED RELAY FUSES REFERENCE CHART
| Connector No. | Name | Connector No. | Name |
|---|---|---|---|
| A-11X | Fog light relay | A-23X | Condenser fan relay < Non-turbo > |
| A-12X | Horn relay | A-24X | Starter relay |
| A-13X | A/C compressor clutch relay | A-25X | Headlight relay (Low) |
| A-14X | - | A-26X | Radiator fan relay < Non-turbo > |
| A-15X | CVT control relay | A-27X | - |
| A-16X | No connection | A-28X | Fan control relay < Non-turbo > |
| A-17X | Headlight relay (High) | A-29X | - |
| A-18X | Throttle actuator control motor relay | A-30X | MFI relay |
| A-19X | - | A-56X | No.1 fuel pump relay |
| A-20X | Daytime running light relay < Discharge type headlight > | A-57X | Radiator fan relay < Turbo > |
| A-21X | Injector relay | A-58X | Condenser fan relay < Turbo > |
| A-22X | Electric pump relay < Turbo > | A-59X | Fan control relay < Turbo > |
