Lancer ES, Standard
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Circuit Diagrams - Lancer
>>
Brake Warning Light, Fuel Warning Light And Oil Pressure Warning Light (Non-Turbo)
Brake Warning Light, Fuel Warning Light And Oil Pressure Warning Light (Non-Turbo)

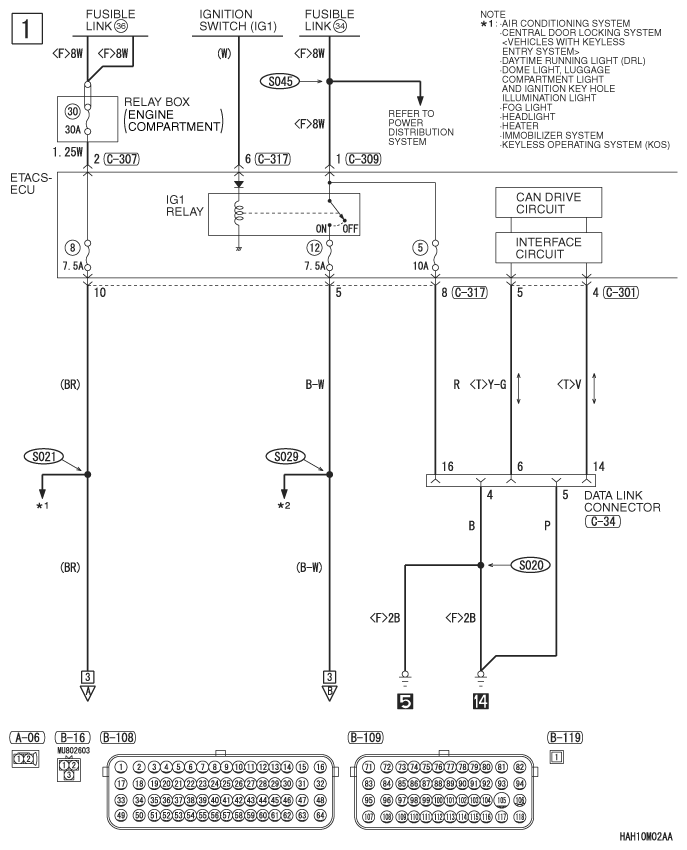

Fig 1: Brake Warning, Fuel Warning Light And Oil Pressure Warning Lights (Non-Turbo) - Circuit Diagram (1 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

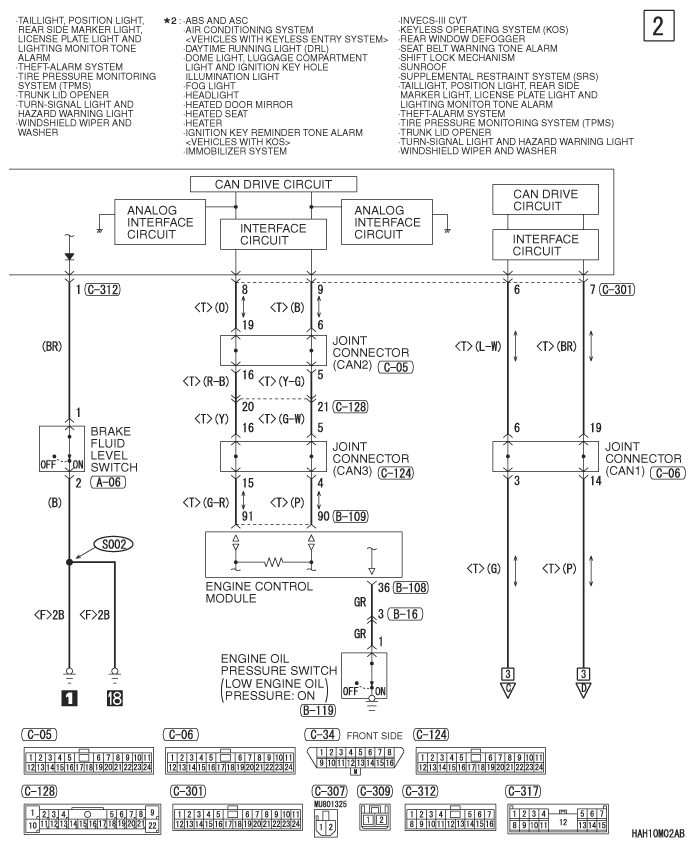

Fig 2: Brake Warning, Fuel Warning Light And Oil Pressure Warning Lights (Non-Turbo) - Circuit Diagram (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

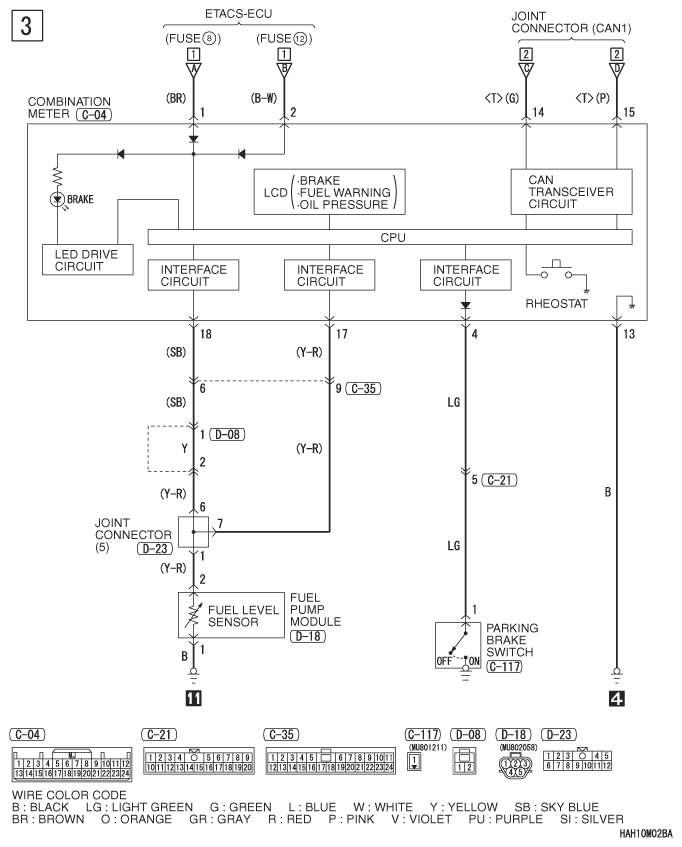

Fig 3: Brake Warning, Fuel Warning Light And Oil Pressure Warning Lights (Non-Turbo) - Circuit Diagram (3 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
