Backup Light (Turbo)

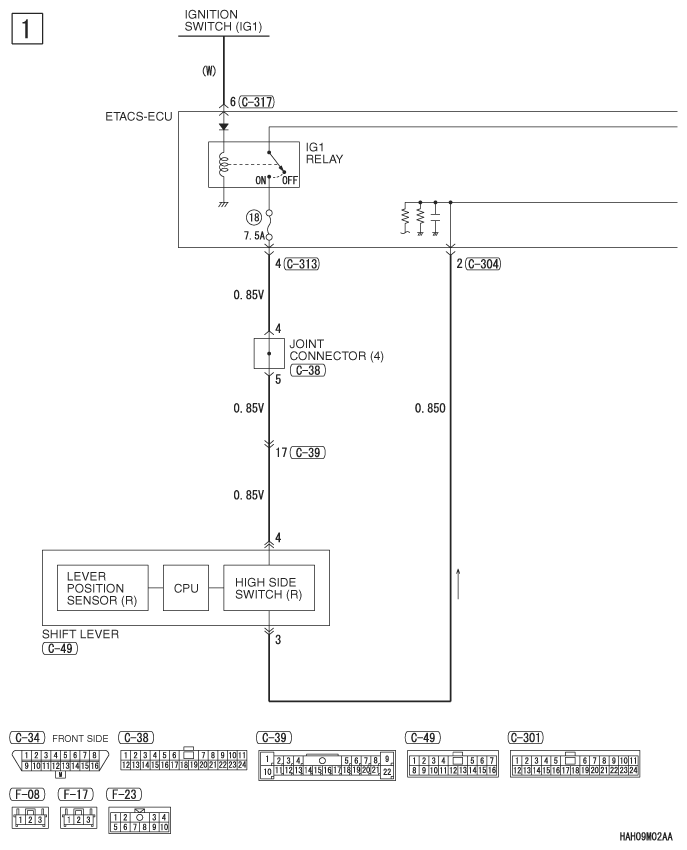

Fig 1: Backup Light (Turbo) - Circuit Diagram (1 Of 2)
G07546758Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

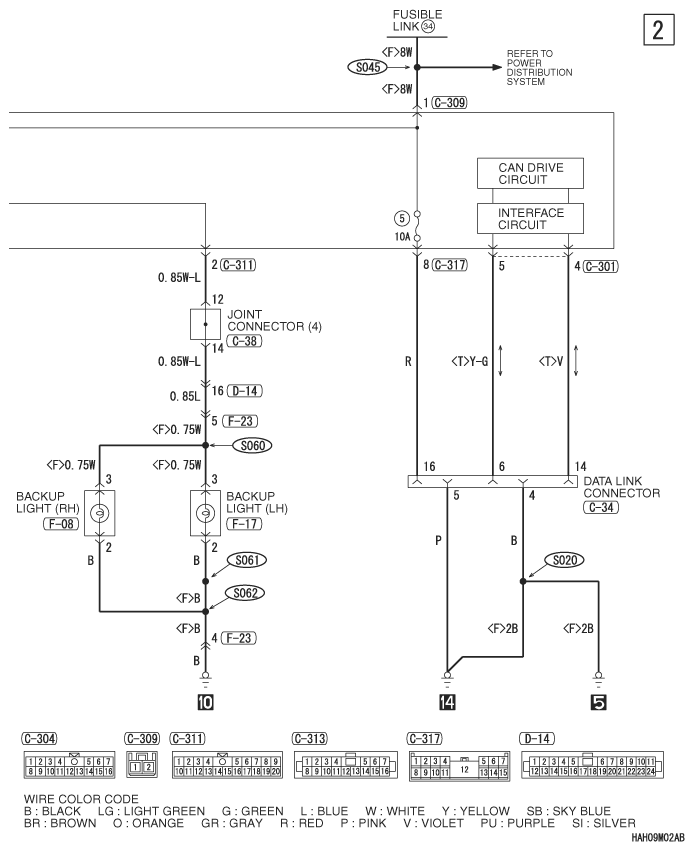

Fig 2: Backup Light (Turbo) - Circuit Diagram (2 Of 2)
G07546759Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
