Audio System < Vehicles Without Audio Amplifier >

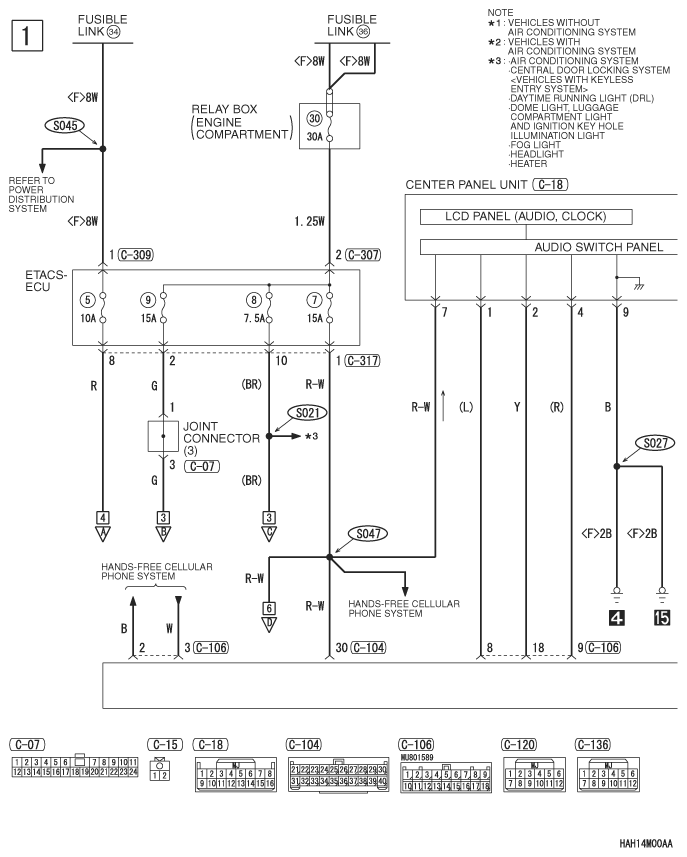

Fig 1: Audio System (Vehicles Without Audio Amplifier) - Circuit Diagram (1 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

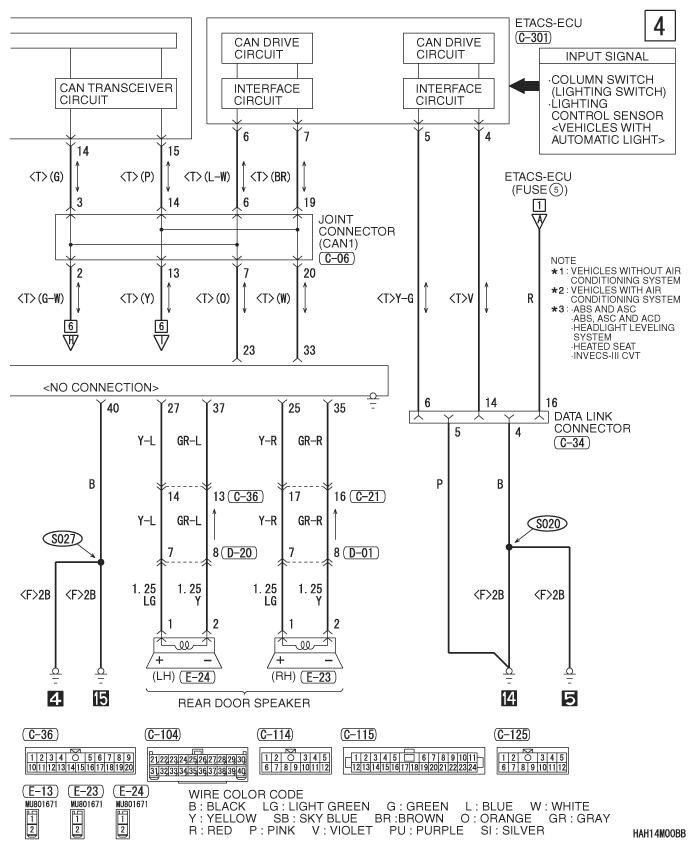

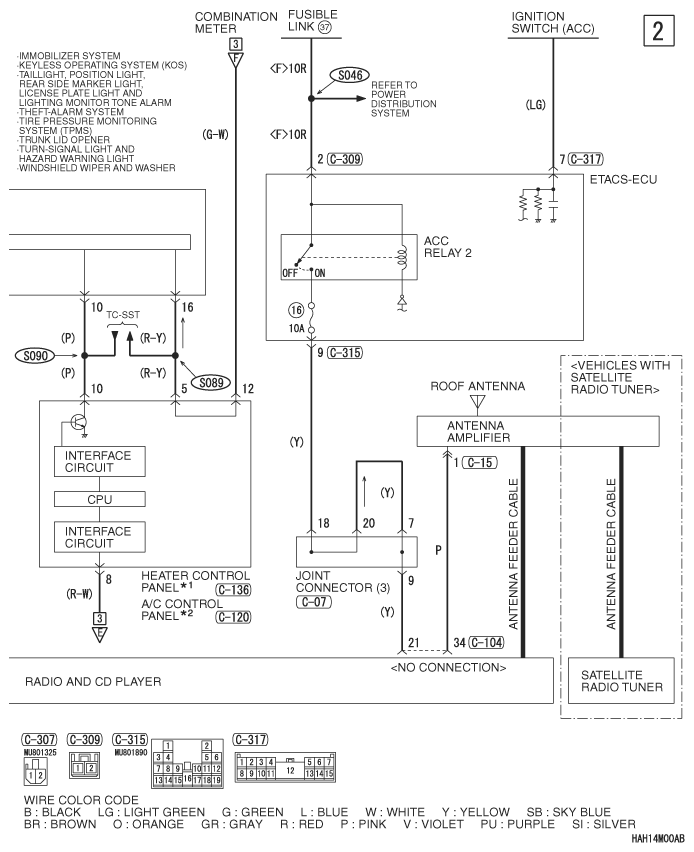

Fig 2: Audio System (Vehicles Without Audio Amplifier) - Circuit Diagram (2 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

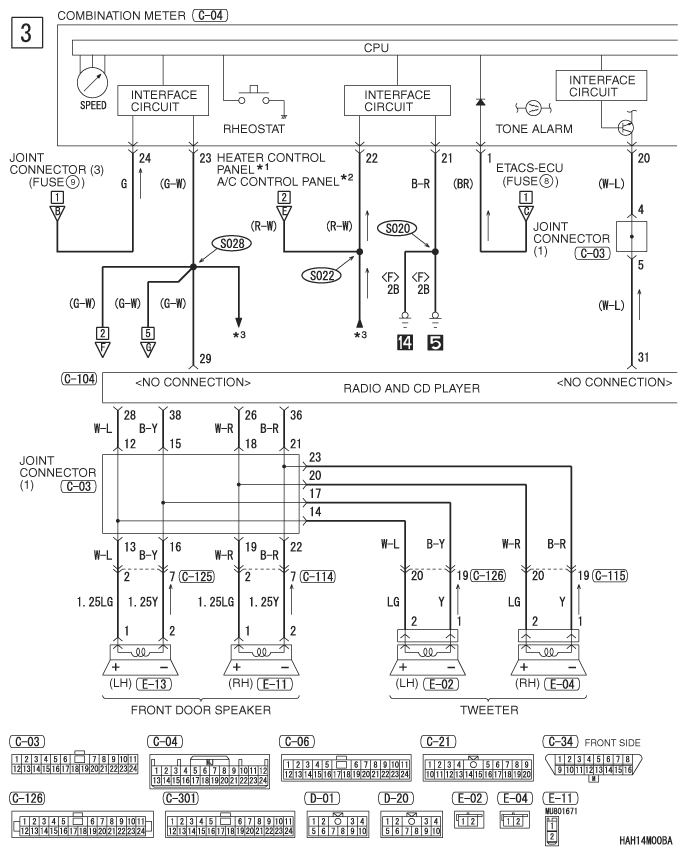

Fig 3: Audio System (Vehicles Without Audio Amplifier) - Circuit Diagram (3 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Audio System (Vehicles Without Audio Amplifier) - Circuit Diagram (4 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

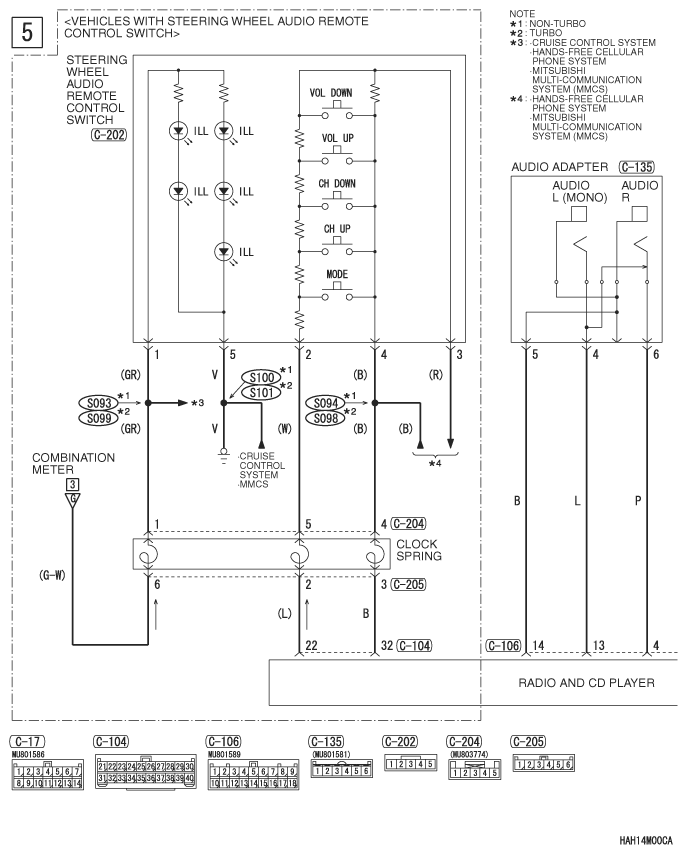

Fig 5: Audio System (Vehicles Without Audio Amplifier) - Circuit Diagram (5 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

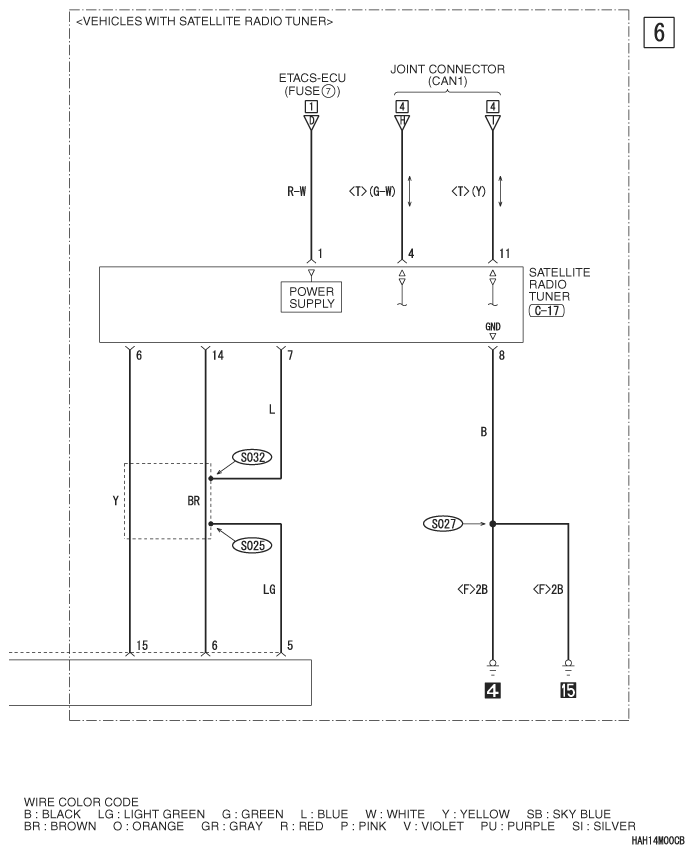

Fig 6: Audio System (Vehicles Without Audio Amplifier) - Circuit Diagram (6 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
