Anti-Lock Braking System (Abs), Active Stability Control System (ASC) And Active Center Differential (ACD) (Turbo)

Fig 1: Anti-Lock Braking System, Active Stability Control System And Active Center Differential (Turbo) - Circuit Diagram (1 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Anti-Lock Braking System, Active Stability Control System And Active Center Differential (Turbo) - Circuit Diagram (2 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Anti-Lock Braking System, Active Stability Control System And Active Center Differential (Turbo) - Circuit Diagram (3 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Anti-Lock Braking System, Active Stability Control System And Active Center Differential (Turbo) - Circuit Diagram (4 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 5: Anti-Lock Braking System, Active Stability Control System And Active Center Differential (Turbo) - Circuit Diagram (5 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 6: Anti-Lock Braking System, Active Stability Control System And Active Center Differential (Turbo) - Circuit Diagram (6 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 7: Anti-Lock Braking System, Active Stability Control System And Active Center Differential (Turbo) - Circuit Diagram (7 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

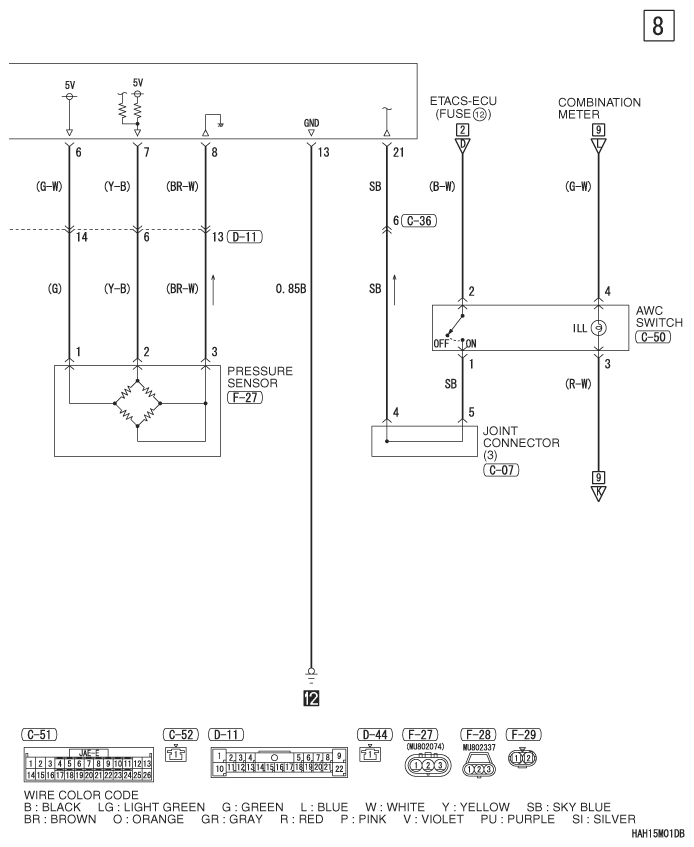

Fig 8: Anti-Lock Braking System, Active Stability Control System And Active Center Differential (Turbo) - Circuit Diagram (8 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 9: Anti-Lock Braking System, Active Stability Control System And Active Center Differential (Turbo) - Circuit Diagram (9 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 10: Anti-Lock Braking System, Active Stability Control System And Active Center Differential (Turbo) - Circuit Diagram (10 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
