Floor And Roof

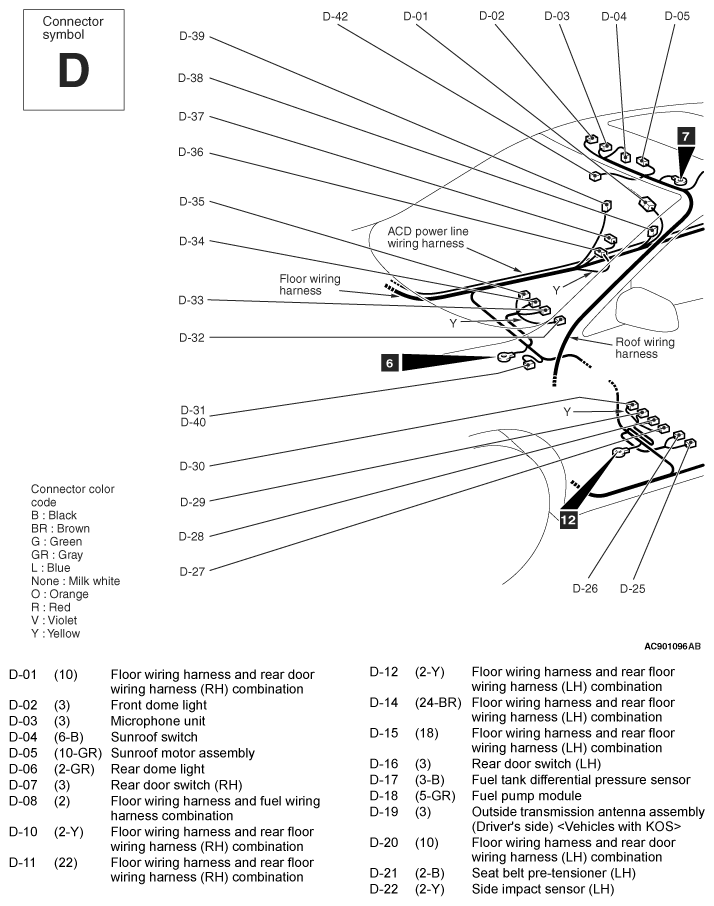

Fig 1: Floor And Roof Configuration Diagram (1 Of 2)
G07546552Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

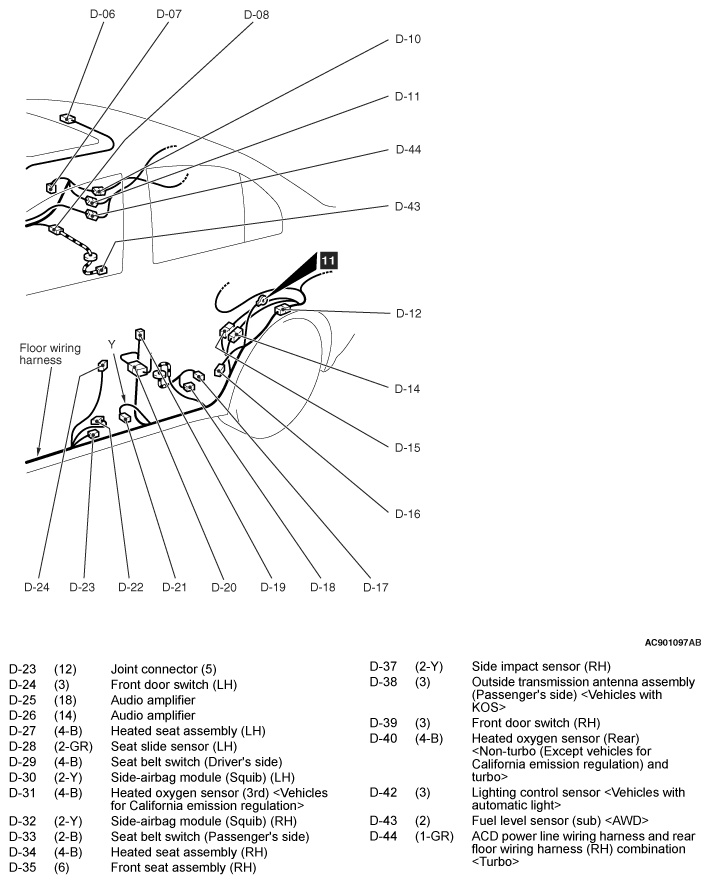

Fig 2: Floor And Roof Configuration Diagram (2 Of 2)
G07546553Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
