Lancer ES, Standard
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Body Electrical
>>
OEM Circuit Diagrams - Lancer
>>
Seat Belt Warning Tone Alarm
Seat Belt Warning Tone Alarm

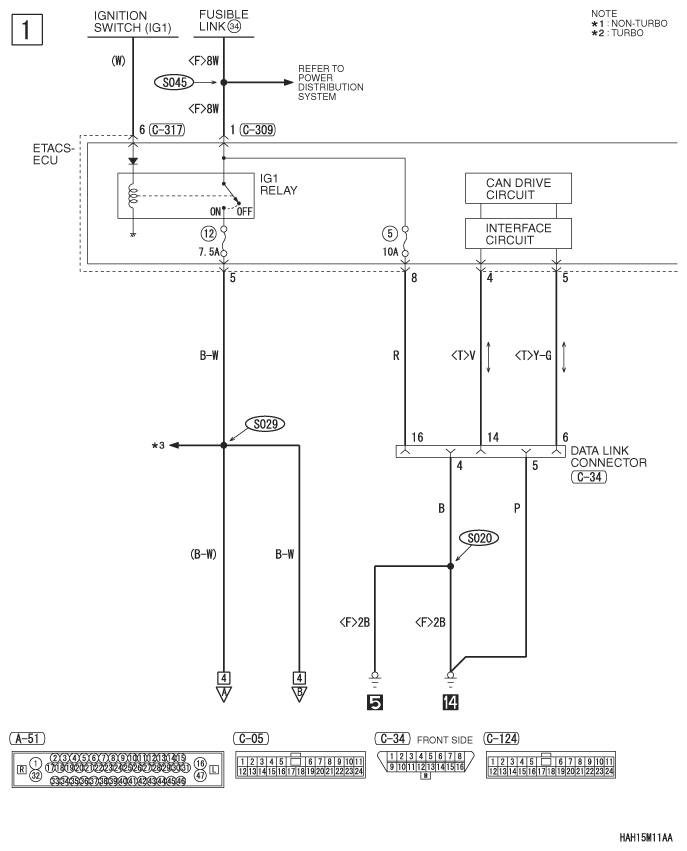

Fig 1: Seat Belt Warning Tone Alarm - Circuit Diagram (1 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

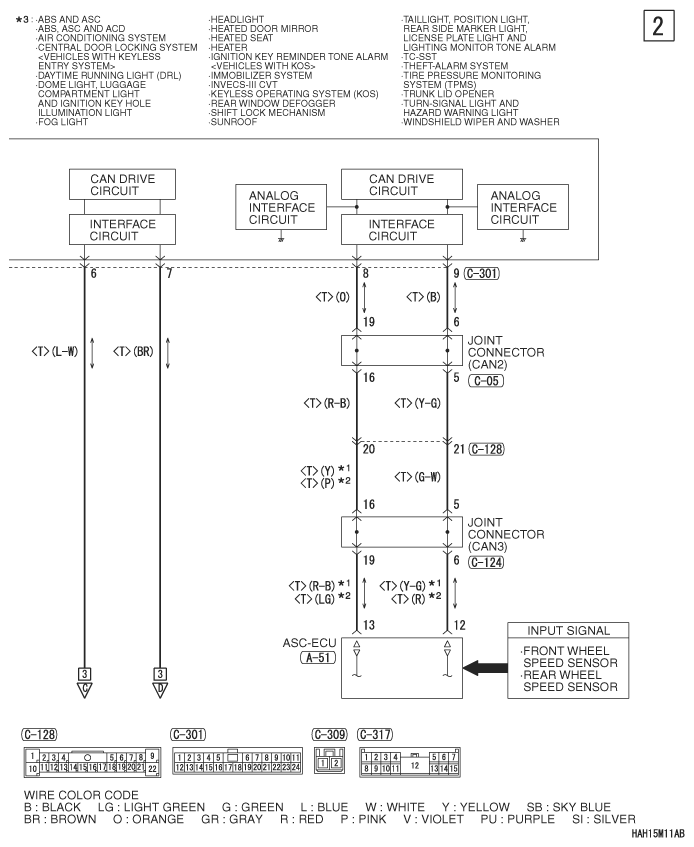

Fig 2: Seat Belt Warning Tone Alarm - Circuit Diagram (2 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

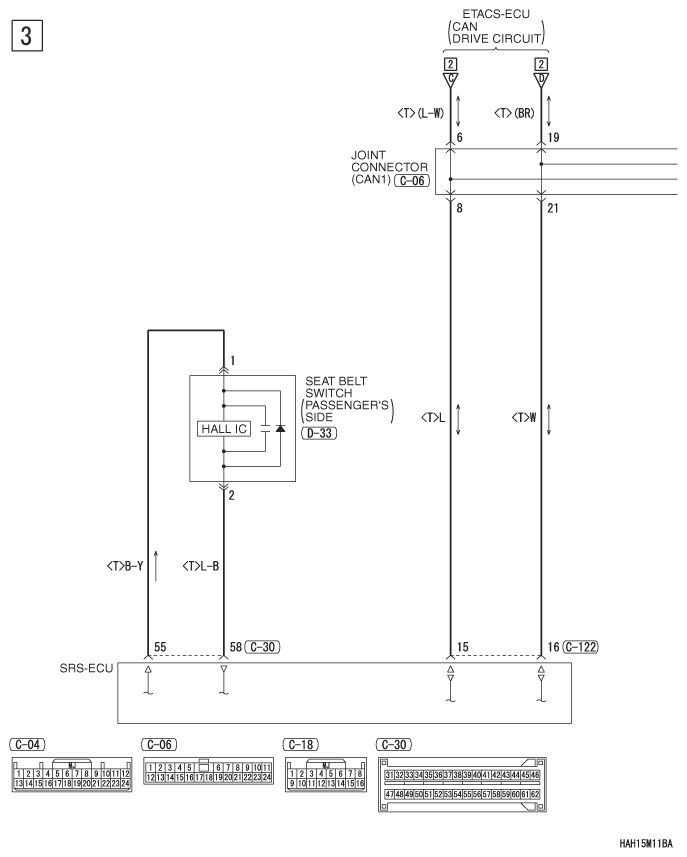

Fig 3: Seat Belt Warning Tone Alarm - Circuit Diagram (3 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

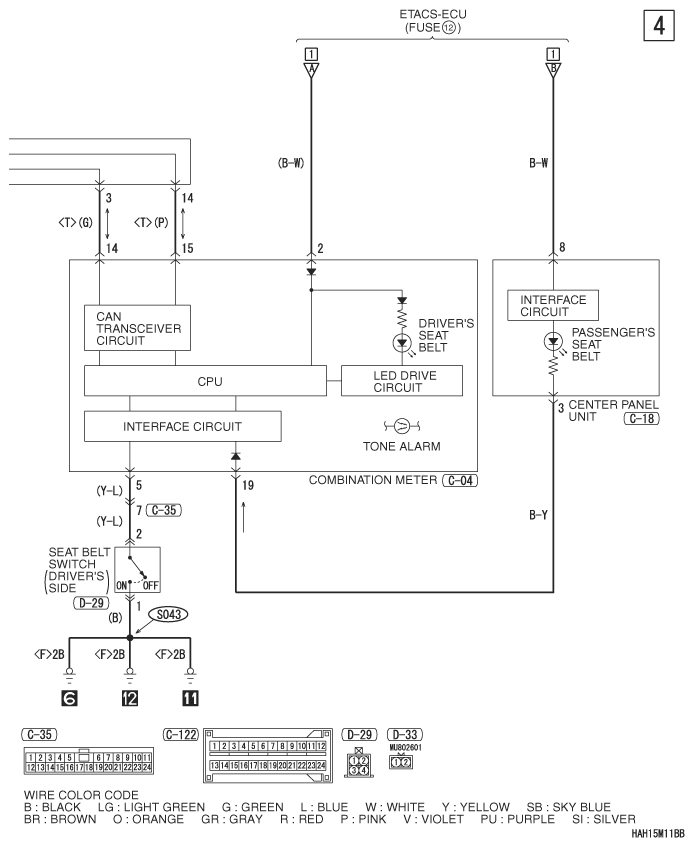

Fig 4: Seat Belt Warning Tone Alarm - Circuit Diagram (4 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
