Parking Brake Reminder Tone Alarm

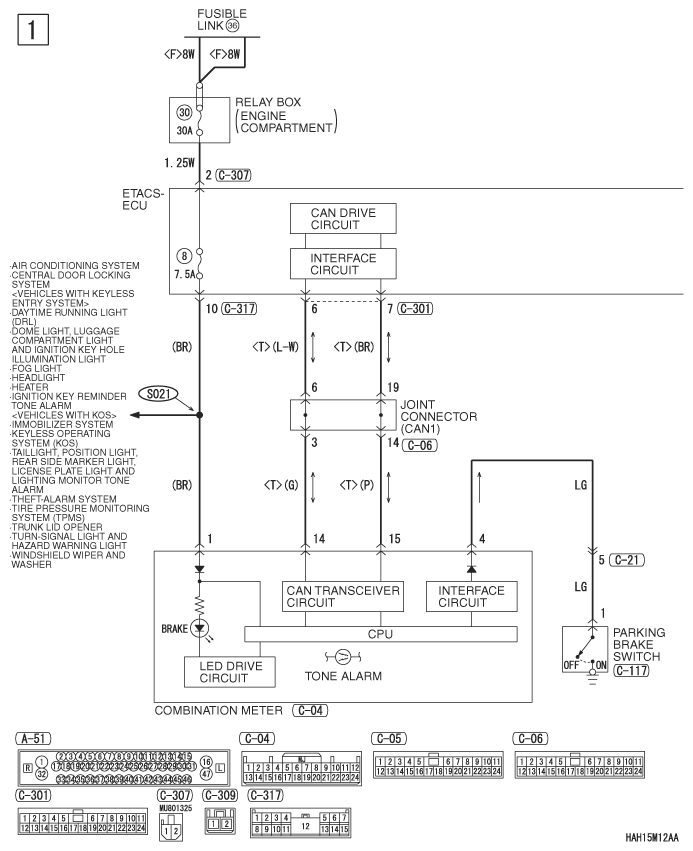

Fig 1: Parking Brake Reminder Tone Alarm - Circuit Diagram (1 Of 2)
G07546974Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

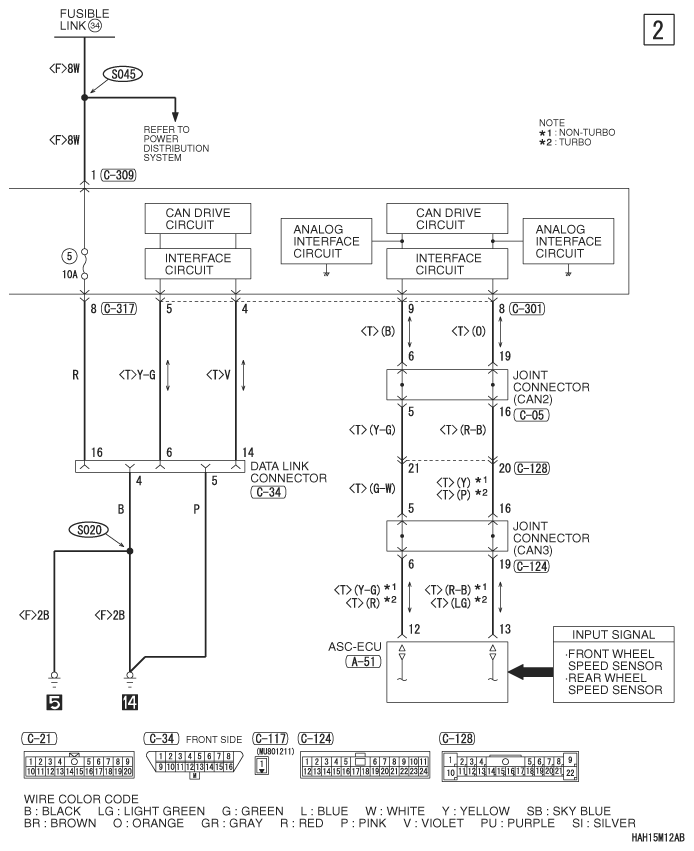

Fig 2: Parking Brake Reminder Tone Alarm - Circuit Diagram (2 Of 2)
G07546975Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
