OEM Circuit Diagrams - Lancer
>>
Meter And Gauge (Turbo)
Meter And Gauge (Turbo)

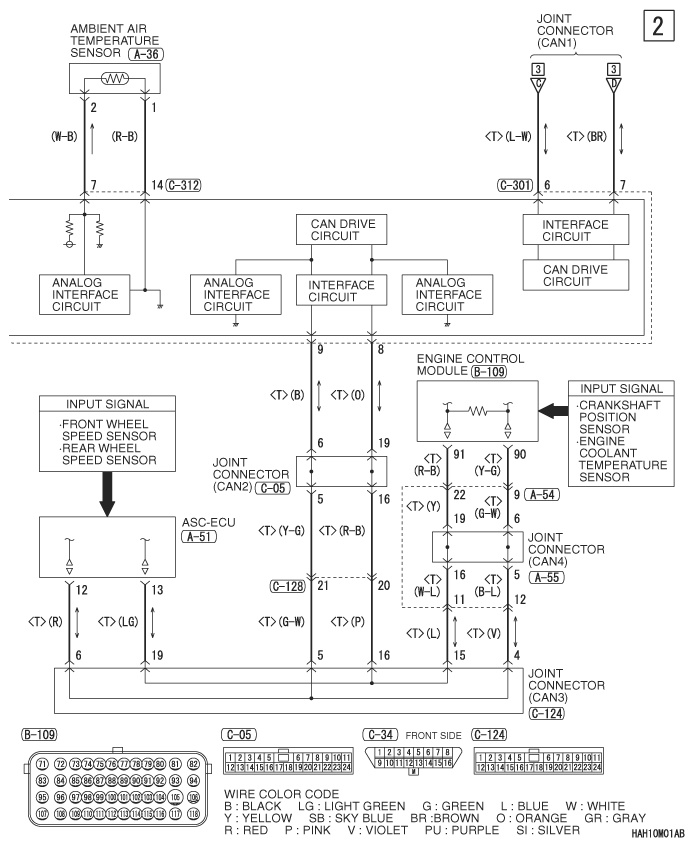

Fig 1: Meter And Gauge (Turbo) - Circuit Diagram (1 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Meter And Gauge (Turbo) - Circuit Diagram (2 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 3: Meter And Gauge (Turbo) - Circuit Diagram (3 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 4: Meter And Gauge (Turbo) - Circuit Diagram (4 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
